Hubbell Hubbell HBL7251C
Hubbell HBL7251C
Kirby Risk #: 487056
UPC: 78358501328, 783585013282, 00783585013282
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Hubbell
Description
Industry Description
Hubbell Wiring Device Kellems, Straight Blade Devices, Male Plug, HeavyDuty, Industrial/Commercial Grade, Angled, 4-Pole 4-Wire Non-Grounding,20A 3 Phase 120/208V AC, 18-20P, Black, Single Pack,
Modified Industry Description
20A 120/208V MALE BLACK
AD Description

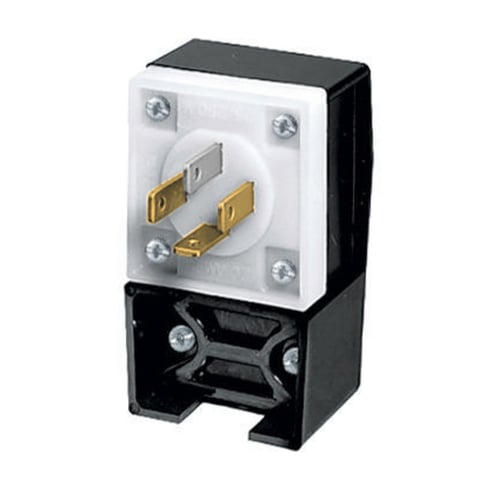

Wiring Device-Kellems HBL7251C 3-Phase Angled Heavy Duty Non-Grounding Male Straight Blade Plug, 120/208 VAC, 20 A
Specifications
| Amperage Rating |
20
|
|---|---|
| Application |
Industrial/Commercial
|
| Brand Name |
Hubbell
|
| Color |
Black/White
|
| Connection |
Terminal Screws
|
| Conductor Size |
#14 AWG to #10 AWG
|
| Cord_Type |
All Portable
|
| Country of Origin |
US
|
| Environmental_Conditions |
Indoor Dry unless Protected by Additional Means
|
| Material |
Composite
|
| Mounting |
Cord Mounted
|
| NEMA_Rating |
16-20P
|
| Number_Of_Poles |
4
|
| Number_Of_Wires |
4
|
| Phase |
3
|
| Size |
Standard Sized
|
| Special Features |
|
| Standard |
NEMA WD1 and WD5, UL498
|
| Sub_Brand |
Hubbell Wiring Device-Kellems
|
| Type |
Insulgrip
|
| Voltage Rating |
120/208
|
| Wattage |
4,160
|
