Hubbell Hubbell HBL5464VY
Hubbell HBL5464VY
Kirby Risk #: 487008
UPC: 78358501318, 783585013183, 00783585013183
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Hubbell
Description
Industry Description
Hubbell Wiring Device Kellems, Straight Blade Devices, Male Plug, ValiseSeries, Industrial/Commercial Grade, Straight, 2-Pole 3-Wire Grounding,20A 250V, 6-20P, Black, Single Pack
Modified Industry Description
20A 250V MALE BLACK
AD Description

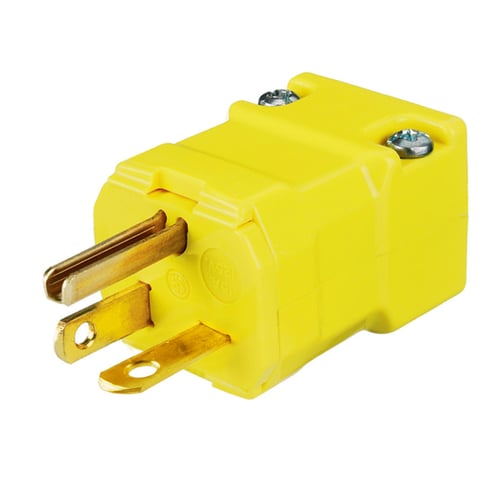

Wiring Device-Kellems Valise® HBL5464VY Grounding Male Standard Straight Blade Plug, 250 VAC, 20 A, 2 Poles, 3 Wires, Yellow
Vendor Description
Hubbell® straight blade Valise® plugs and connector bodies are ideal for OEMs because their superior performance will help your own products perform better. Valise® devices are designed to be easy to wire and quick to assemble. Yet, they provide superior cord gripping, impact- and crush resistance and a totally insulated body for added safety.
Specifications
| Amperage Rating |
20
|
|---|---|
| Application |
Industrial/Commercial
|
| Brand Name |
Hubbell
|
| Color |
Yellow
|
| Connection |
Terminal Screws
|
| Conductor Size |
#12 AWG to #10 AWG
|
| Cord_Type |
All Portable
|
| Country of Origin |
PR
|
| Enclosure |
IP20
|
| Environmental_Conditions |
Indoor Dry unless Protected by Additional Means
|
| Grade |
Commercial/Industrial
|
| Material |
Composite
|
| Mounting |
Cord Mounted
|
| NEMA_Rating |
NEMA 6-20P
|
| Number_Of_Poles |
2
|
| Number_Of_Wires |
3
|
| Phase |
1
|
| Size |
Standard Sized
|
| Special Features |
|
| Standard |
NEMA WD1 and WD5, UL498
|
| Sub_Brand |
Hubbell Wiring Device-Kellems
|
| Temperature_Rating |
-40 to 75
|
| Type |
Grounding Male Standard
|
| Voltage Rating |
250
|
| Wattage |
5,000
|
