Hubbell Hubbell HBL5369C
Hubbell HBL5369C
Kirby Risk #: 486973
UPC: 78358517425, 783585174259, 00783585174259
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Hubbell
Description
Industry Description

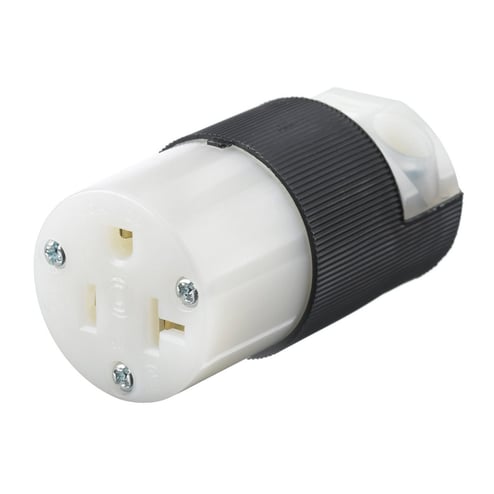

Hubbell Wiring Device Kellems, Straight Blade Devices, Female ConnectorBody, Insulgrip Heavy Duty, Industrial/Commercial Grade, Straight, 2-Pole 3-Wire Grounding, 20A 125V, 5-20R, Black and White, Single Pack
Modified Industry Description
20A 125V - BLACK AND WHITE FEMALE CONNECTOR BODY, 2 POLE, 3 WIRE
AD Description
Wiring Device-Kellems Insulgrip® HBL5369C Female Grounding Insulated Straight Blade Connector, 125 VAC, 20 A, 2 Poles, 3 Wires, Black
Specifications
| Amperage Rating |
20
|
|---|---|
| Application |
Industrial/Commercial
|
| Brand Name |
Hubbell
|
| Color |
Black
|
| Conductor Range |
#14AWG - #12AWG
|
| Connection |
Screw Terminals
|
| Country of Origin |
US
|
| Enclosure |
IP20
|
| Environmental_Conditions |
Indoor Dry unless Protected by Additional Means
|
| Grade |
Commercial/Industrial
|
| Insulation |
Insulated Body
|
| Material |
Composite
|
| Mounting |
Cord Mounted
|
| NEMA_Configuration |
5-20R
|
| NEMA_Rating |
NEMA 5-20R
|
| Number Of Conductors |
3
|
| Number_Of_Poles |
2
|
| Number_Of_Wires |
3
|
| Poles |
2
|
| Size |
Standard
|
| Special Features |
|
| Standard |
NEMA WD1 and WD5, UL498
|
| Sub_Brand |
Straight Blade
|
| Temperature_Rating |
-40 to 75
|
| Type |
Female Grounding Insulated
|
| Voltage Rating |
125
|
