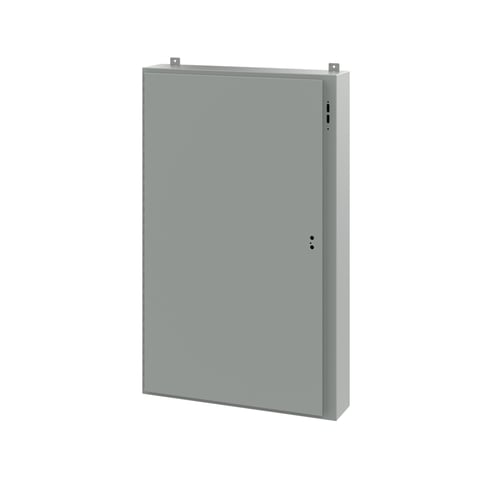

Hoffman Hoffman A60SA3808LP


Description

Industry Description

Disconnect Enclosure with Handle, Type 12, 60.00x37.38x8.00, Steel

Modified Industry Description

DISCONNECT ENCL. 60.00X37.38X8

AD Description

Hoffman A60SA3808LP A25 Preferred Cutout Disconnect Enclosure, 60 in L x 37.38 in W x 8 in D, NEMA 12/13/IP65 NEMA Rating, Steel

Vendor Description

These general purpose disconnect enclosures accept major brand disconnect switches and circuit breakers, available with or without the nVent HOFFMAN supplied defeater door handle and handle hardware.

Specifications

Application
Arc Flash Safety; Controls and Drives; Power Distribution
Color
Gray
Country of Origin
US
Finish
Polyester Powder Coated
Length1
60
Material
Steel
Mounting_Type
Wall
NEMA_Rating
NEMA 12/13/IP65
Series
A25
Size
60.00X37.38X8.00 in
Special Features

  • 14 ga steel body
  • Bonding provision on door
  • Collar stud for mounting optional panels
  • Data pocket is high impact thermoplastic
  • External formed body flange channels away liquids
  • External welded on mounting brackets for easy installation
  • Holes in body and door for mounting disconnect operating handle, operating mechanism and door hardware
  • Installation instructions provided
  • Oil-resistant gasket
  • Removable door with continuous hinge
  • Seams continuously welded and ground smooth
  • Without handle and handle hardware
Standard
UL 508A Listed, Type 12, 13, File No. E61997, cUL Listed per CSA C22.2 No. 94, Type 12, 13, File No. E61997 , NEMA/EEMAC Type 12, 13, CSA File No. 42186: Type 12 , IEC 60529, IP65
Sub_Brand
Hoffman
Type
Mild Steel Wall Mounted Industrial Disconnect Enclosures
