Hubbell Hubbell HBL5866VY


Description

Industry Description

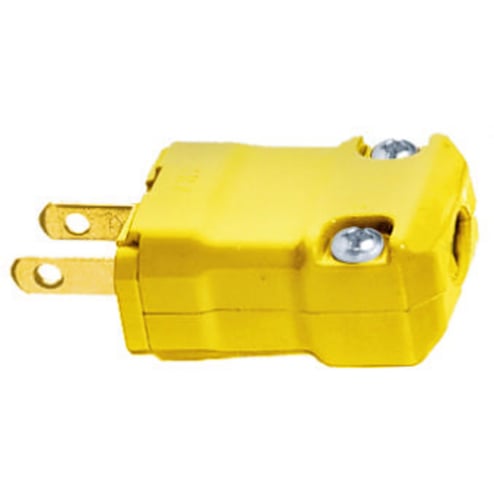

Hubbell Wiring Device Kellems, Straight Blade Devices, Male Plug, ValiseSeries, Industrial/Commercial Grade, Straight, 2-Pole 2-Wire Non-Grounding, 15A 125V, 1-15P , Yellow, Single Pack

Modified Industry Description

15A 125V - VALISE YELLOW MALE PLUG, 2 POLE, 2 WIRE, POLARIZED

AD Description

Wiring Device-Kellems Valise® HBL5866VY Grounding Standard Straight Blade Plug, 250 VAC, 15 A, 2 Poles, 3 Wires, Yellow

Specifications

Amperage Rating
15
Application
Industrial/Commercial
Brand Name
Hubbell
Color
Yellow
Connection
Terminal Screws
Conductor Size
#16 AWG to #10 AWG
Cord_Type
All Portable
Country of Origin
US
Enclosure
IP20
Environmental_Conditions
Indoor Dry unless Protected by Additional Means
Grade
Commercial/Industrial
Material
Composite
Mounting
Cord Mounted
NEMA_Configuration
1-15P
NEMA_Rating
NEMA 1-15P
Number_Of_Poles
2
Number_Of_Wires
3
Phase
Single
Poles
2
Size
Standard Sized
Special Features

  • 0.06 in brass contact blades
  • 18 to 14 AWG solid or stranded copper conductor terminal accommodation
  • Certified for current interrupting at full rated current
  • Hinged one-piece body design for easy assembly
  • Maximum 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75% temperature rise
  • Polarized blades, nylon housing, noryl (polyphenylene oxide) cord clamp material
  • Powerful cord grips prevent conductor slippage and strain
  • Steel (copper or nickel finish) terminal screw
  • Terminals identified in accordance with UL 498 (brass, white, green)
  • Two captive multiple drive assembly screws
  • UL 94-HB or better flammability rating
  • Withstands 2000 VAC dielectric voltage
Standard
NEMA WD1 and WD5, UL498
Sub_Brand
Hubbell Wiring Device-Kellems
Temperature_Rating
-40 to 75
Type
Grounding Standard
Voltage Rating
250
Wattage
1875
