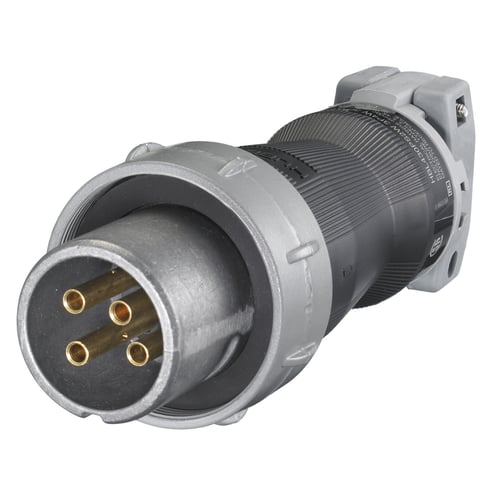

Hubbell Hubbell HBL430PS2W


Description

Industry Description

Hubbell Wiring Device Kellems, Heavy Duty Products, Insulgrip PinandSleeve Devices, Industrial Grade, Male, Plug, 30A 600V AC, 3-Pole 4-Wire Grounding Style 2, Terminal Screws, Gray and Black, Watertight

Modified Industry Description

30A 600V 3 POLE 4 WIRE MALE PIN PLUG

AD Description

Wiring Device-Kellems Insulgrip® HBL430PS2W Grounding Male Watertight Pin & Sleeve Plug, 600 VAC, 30 A, 3 Poles, 4 Wires, Black/Gray

Specifications

Amperage Rating
30
Application
High Ampacity Connections
Brand Name
Hubbell
Color
Black/Gray
Connection
Pressure Terminal Screws
Conductor Size
#10 AWG to #8 AWG
Cord_Type
All Portable
Country of Origin
US
Environmental_Conditions
Watertight
Grade
Industrial
Material
Composite
Mounting
Cord Mounted
NEMA_Rating
Non-NEMA
Number_Of_Poles
3
Number_Of_Wires
4
Size
Standard Sized
Special Features

  • 0.68 in to 1.05 in cord clamp range and 3/8 to 1.2 in outer diameter cable
  • Brass ground standoff
  • Brass ground, phase sleeve
  • Maximum 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75% temperature rise
  • Neoprene grommet/glands
  • Nickel plated brass clamp nut
  • Nickel plated spring bronze ground bracket
  • Rynite® SST35 gland cap
  • Stainless steel (300 series) assembly screws, Rynite® SST35 cord clamps
  • Stainless steel (300 series) cord clamp screws
  • Up to 1000 connect and disconnect cycles at full rated current and voltage endurance
  • Withstands 3000 VAC dielectric voltage
Standard
UL 498, and UL1686
Sub_Brand
Hubbell Wiring Device-Kellems
Temperature_Rating
-40 to 75
Type
Grounding Male Watertight
Voltage Rating
600
