Hubbell Hubbell HBL5266CA
Hubbell HBL5266CA
Kirby Risk #: 486862
UPC: 78358517305, 783585173054, 00783585173054
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Hubbell
Description
Industry Description
Hubbell Wiring Device Kellems, Straight Blade Devices, Male Plug,Insulgrip Heavy Duty, Industrial/Commercial Grade, Angled, 2-Pole 3-WireGrounding, 15A 125V, 5-15P, Black and White, Single Pack
Modified Industry Description
15A 125V - BLACK AND WHITE MALE PLUG, 2 POLE, 3 WIRE, ANGLED
AD Description

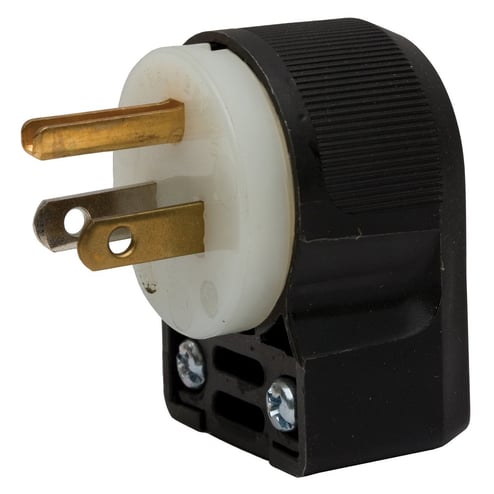

Wiring Device-Kellems Insulgrip® HBL5266CA Grounding Standard Straight Blade Plug, 125 VAC, 15 A, 2 Poles, 3 Wires, Black/White
Specifications
| Amperage Rating |
15
|
|---|---|
| Application |
Industrial/Commercial
|
| Brand Name |
Hubbell
|
| Color |
Black/White
|
| Connection |
Terminal Screws
|
| Conductor Size |
#16 AWG to #10 AWG
|
| Cord_Type |
All Portable
|
| Country of Origin |
US
|
| Enclosure |
IP20
|
| Environmental_Conditions |
Indoor Dry unless Protected by Additional Means
|
| Grade |
Commercial/Industrial
|
| Material |
Composite
|
| Mounting |
Cord Mounted
|
| NEMA_Configuration |
5-15P
|
| NEMA_Rating |
NEMA 5-15P
|
| Number_Of_Poles |
2
|
| Number_Of_Wires |
3
|
| Phase |
Single
|
| Poles |
2
|
| Size |
Standard Sized
|
| Special Features |
|
| Standard |
NEMA WD1 and WD5, UL498
|
| Sub_Brand |
Hubbell Wiring Device-Kellems
|
| Temperature_Rating |
-40 to 75
|
| Type |
Grounding Standard
|
| Voltage Rating |
125
|
| Wattage |
1875
|
