Bussmann Bussmann 16023-3


Description

Industry Description

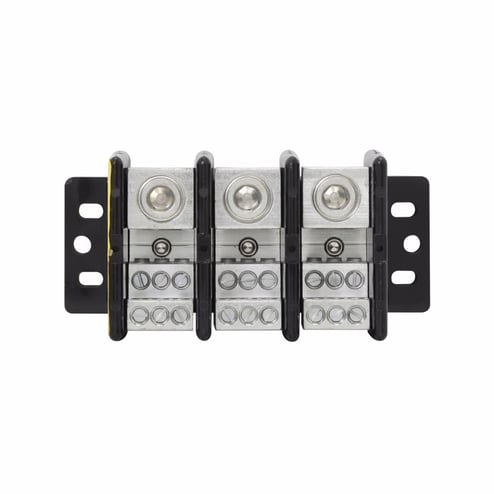

310A 600V Distribution 3 Pole Power Terminal Block

Modified Industry Description

TERMINAL BLOCK 3P 310A 600V

AD Description

Edison Magnum® 16023-3 Barrier Standard Power Terminal Block, 600 VAC/VDC, 310 A, 3 Poles, 6 AWG to 350 kcmil Wire, Thermoplastic

Vendor Description

Edison series UL Recognized power distribution blocks offer a variety of lineside and loadside port configurations to provide greater flexibility in panel wiring and wire management. These blocks are UL Recognized to UL 1059 and rated for use in UL 508A industrial control panels. Blocks are factory configured in 1-, 2 and 3-pole versions, and have optional covers to enhance safety (order covers separately).

Specifications

Amperage Rating
310
Application
Power Distribution
Brand Name
Bussmann
Color
Black
Country of Origin
MX
Material
Molded Thermoplastic
Size
5.37 In Length X 2.80 In Width X 2.12 In Height
Special Features

  • (1) screw primary, (6) screw secondary
  • 6 AWG to 350 kcmil aluminum line, (6) 1 4 to 4 AWG copper, 12 to 4 AWG aluminum load wire
  • Dual wire applications are only viable when using two wires of the same size, stranding and insulating and conductor material in the same port
  • Ferrule applications allow for the use of a broader range of conductor stranding and simulate a more efficient, solid wire connection with the terminal port
  • Molded thermoplastic base, tin plated aluminum connector
  • Rated for dual wire port application to increase the possible number of lineside and loadside connections
  • SMD/SMT style mounting
Standard
UL 1059, CSA
Sub_Brand
Cooper Bussmann
Type
Standard
Voltage Rating
600
