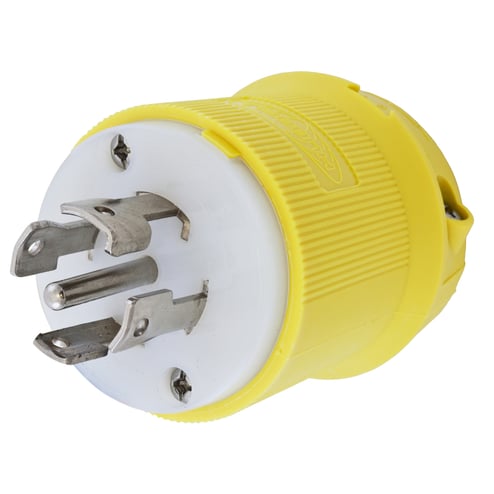

Hubbell Hubbell HBL28CM11
Hubbell HBL28CM11
Kirby Risk #: 485434
UPC: 78358503977, 783585039770, 00783585039770
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Hubbell
Description
Industry Description
Hubbell Wiring Device Kellems, Locking Devices, TwistLock, Marine Grade,Male Plug, 30A 3-Phase 120/208V AC, 4-Pole 5-Wire Grounding, L21-30P,Screw Terminal, Yellow
Modified Industry Description
LOCKING MALE PLUG NEMA L21-30P
AD Description
Wiring Device-Kellems Twist-Lock® Insulgrip® HBL28CM11 3-Phase Male Non-Grounding Locking Plug, 120/208 VAC, 30 A, 4 Poles, 4 Wires, Yellow
Specifications
| Amperage Rating |
30
|
|---|---|
| Application |
Extra Heavy Duty Industrial
|
| Brand Name |
Hubbell
|
| Color |
Yellow
|
| Connection |
Pressure Screw Terminal
|
| Conductor Size |
#12AWG to #8AWG
|
| Cord_Type |
All Listed Portables
|
| Country of Origin |
PR
|
| Environmental_Conditions |
Indoor Dry unless Protected by Additional Means
|
| Material |
Composite
|
| Mounting |
Cord Mounted
|
| NEMA_Rating |
L21-30P
|
| Number_Of_Poles |
4
|
| Number_Of_Wires |
5
|
| Phase |
3
|
| Size |
Standard Sized
|
| Special Features |
|
| Standard |
NEMA WD1 and WD5, UL498
|
| Sub_Brand |
Hubbell Wiring Device-Kellems
|
| Type |
Insulgrip
|
| Voltage Rating |
120/208
|
| Wattage |
6,240
|
