Hubbell Hubbell HBL2731
Hubbell HBL2731
Kirby Risk #: 485174
UPC: 78358503931, 783585039312, 00783585039312
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Hubbell
Description
Industry Description
Hubbell Wiring Device Kellems, Locking Devices, TwistLock, Industrial,Male Plug, 30A 3-Phase 480V AC, 3-Pole 4-Wire Grounding, L16-30P, ScrewTerminal, Black and White
Modified Industry Description
30A 480V - LOCKING MALE PLUG, 3 POLE, 4 WIRE
AD Description

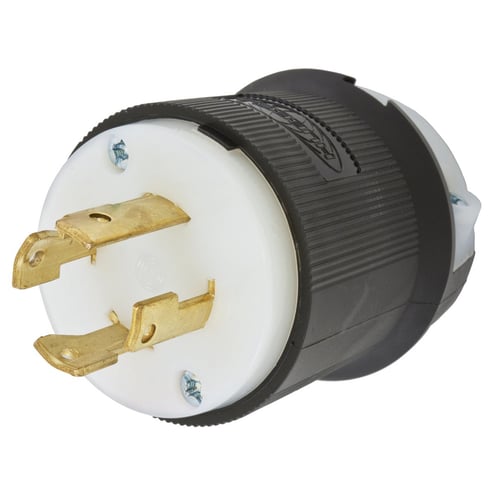

Wiring Device-Kellems Twist-Lock® Insulgrip® HBL2731 Grounding Locking Plug, 480 VAC, 30 A, 3 Poles, 4 Wires, Black/White
Specifications
| Amperage Rating |
30
|
|---|---|
| Application |
Extra Heavy Duty Industrial
|
| Brand Name |
Hubbell
|
| Color |
Black/White
|
| Connection |
Pressure Screw Terminal
|
| Conductor Size |
#12AWG to #8AWG
|
| Cord_Type |
All Listed Portables
|
| Country of Origin |
US
|
| Enclosure |
IP20
|
| Environmental_Conditions |
Indoor Dry unless Protected by Additional Means
|
| Grade |
Industrial
|
| Material |
Composite
|
| Mounting |
Cord Mounted
|
| NEMA_Configuration |
L16-30P
|
| NEMA_Rating |
NEMA L16-30P
|
| Number_Of_Poles |
3
|
| Number_Of_Wires |
4
|
| Phase |
Three
|
| Poles |
3
|
| Size |
Standard Sized
|
| Special Features |
|
| Standard |
NEMA WD1 and WD5, UL498
|
| Sub_Brand |
Hubbell Wiring Device-Kellems
|
| Temperature_Rating |
-40 to 75
|
| Type |
Grounding
|
| Voltage Rating |
480
|
| Wattage |
14400
|
