Hubbell Hubbell HBL26CM11
Hubbell HBL26CM11
Kirby Risk #: 484944
UPC: 78358503908, 783585039084, 00783585039084
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Hubbell
Description
Industry Description

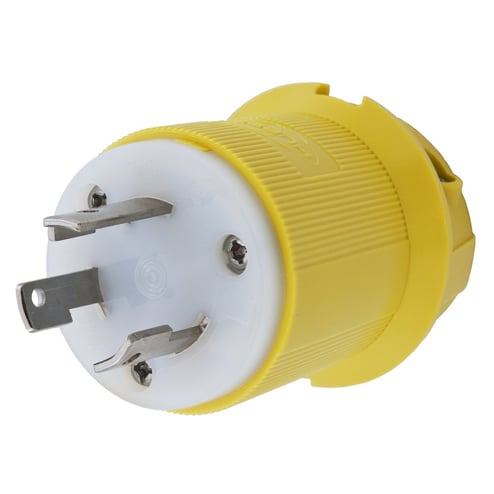

Hubbell Wiring Device Kellems, Locking Devices, TwistLock, Marine Grade,Male Plug, 30A 125V, 2-Pole 3-Wire Grounding, L5-30P, Screw Terminal,Yellow
Modified Industry Description
30A 125V MALE YELLOW MARINE
AD Description
Wiring Device-Kellems Twist-Lock® Insulgrip® HBL26CM11 1-Phase Corrosion Resistant Grounding Male Standard Locking Plug, 125 VAC, 30 A, 2 Poles, 3 Wires, Yellow
Specifications
| Amperage Rating |
30
|
|---|---|
| Application |
Extra Heavy Duty Industrial
|
| Brand Name |
Hubbell
|
| Color |
Yellow
|
| Connection |
Pressure Screw Terminal
|
| Conductor Size |
#12AWG to #8AWG
|
| Cord_Type |
All Listed Portables
|
| Country of Origin |
US
|
| Environmental_Conditions |
Indoor Dry unless Protected by Additional Means
|
| Material |
Composite
|
| Mounting |
Cord Mounted
|
| NEMA_Rating |
L5-30P
|
| Number_Of_Poles |
2
|
| Number_Of_Wires |
3
|
| Phase |
1
|
| Size |
Standard Sized
|
| Special Features |
|
| Standard |
NEMA WD1 and WD5, UL498
|
| Sub_Brand |
Hubbell Wiring Device-Kellems
|
| Type |
Insulgrip
|
| Voltage Rating |
125
|
| Wattage |
3,750
|
