Hubbell Hubbell HBL2651


Description

Industry Description

Hubbell Wiring Device Kellems, Locking Devices, TwistLock, Industrial,Male Plug, 30A 600V AC, 2-Pole 3-Wire Grounding, L9-30P, Screw Terminal,Black and White

Modified Industry Description

30A 600V MALE BLACK WHITE

AD Description

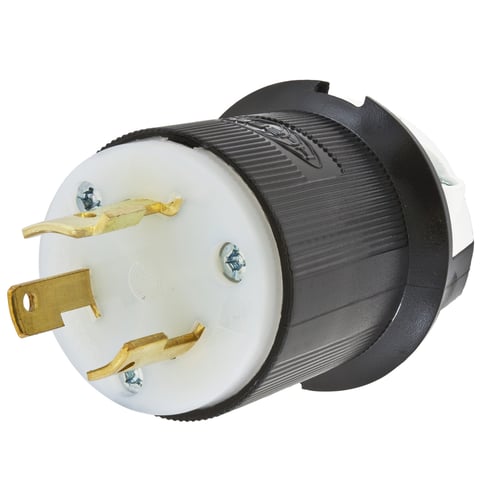

Wiring Device-Kellems Twist-Lock® Insulgrip® HBL2651 Grounding Locking Plug, 600 VAC, 30 A, 2 Poles, 3 Wires, Black/White

Specifications

Amperage Rating
30
Application
Extra Heavy Duty Industrial
Brand Name
Hubbell
Color
Black/White
Connection
Pressure Screw Terminal
Conductor Size
#12AWG to #8AWG
Cord_Type
All Listed Portables
Country of Origin
PR
Enclosure
IP20
Environmental_Conditions
Indoor Dry unless Protected by Additional Means
Grade
Industrial
Material
Composite
Mounting
Cord Mounted
NEMA_Rating
NEMA L9-30P
Number_Of_Poles
2
Number_Of_Wires
3
Phase
1
Size
Standard Sized
Special Features

  • #10-32 brass (Phillips/slotted/Robertson) terminal screws
  • 10 to 8 AWG wire
  • 16 to 8 AWG stranded copper wire terminal accommodation
  • Clear, funnel shaped wire entry for ease of termination
  • Indoor dry unless protected by additional means
  • Integral dust shield protects wiring chamber from dust or contaminants
  • Maximum 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75% temperature rise
  • Natural white nylon blade holder material and cord clamp material
  • Superior cord grip design protects terminations from excess strain
  • Terminals identified in accordance with UL 498
  • Withstands 2000 VAC dielectric voltage
Standard
NEMA WD1 and WD5, UL498
Sub_Brand
Hubbell Wiring Device-Kellems
Temperature_Rating
-40 to 75
Type
Grounding
Voltage Rating
600
Wattage
18
