Hubbell Hubbell HBL2415
Hubbell HBL2415
Kirby Risk #: 484540
UPC: 78358503817, 783585038179, 00783585038179
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Hubbell
Description
Industry Description

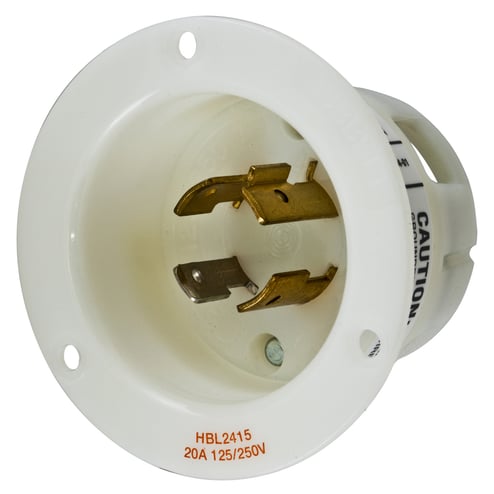

Hubbell Wiring Device Kellems, Locking Devices, TwistLock, Industrial,Flanged Inlet, 20A 125/250V, 3-Pole 4-Wire Grounding, L14-20P, ScrewTerminal, White
Modified Industry Description
20A 125/250V - WHITE FLANGED INLET, 3 POLE, 4 WIRE
AD Description
Wiring Device-Kellems Twist-Lock® Insulgrip® HBL2415 Extra Heavy Duty Grounding Locking Flanged Inlet, 125/250 VAC, 20 A, 3 Poles, 4 Wires, White
Specifications
| Amperage Rating |
20
|
|---|---|
| Application |
Extra Heavy Duty Industrial
|
| Brand Name |
Hubbell
|
| Color |
White
|
| Connection |
Screw Terminals
|
| Conductor Size |
#12AWG to #10AWG
|
| Country of Origin |
US
|
| Dielectric_Strength |
Withstands 2,000V minimum
|
| Enclosure |
NEMA 4/4X/12/IP44
|
| Environmental_Conditions |
Indoor Dry unless Protected by Additional Means
|
| Grade |
Industrial
|
| Material |
Composite/Thermoplastic
|
| Mounting |
Flange
|
| NEMA_Configuration |
L14-20P
|
| NEMA_Rating |
NEMA L14-20P
|
| Number_Of_Poles |
3
|
| Number_Of_Wires |
4
|
| Phase |
Single Phase Motors
|
| Size |
Standard Sized
|
| Special Features |
|
| Standard |
NEMA WD1 and WD5, UL498
|
| Sub_Brand |
Hubbell Wiring Device-Kellems
|
| Temperature_Rating |
-40 to 75
|
| Type |
Extra Heavy Duty Grounding
|
| Voltage Rating |
125/250
|
| Wattage |
5000
|
