Hubbell Hubbell HBL2341
Hubbell HBL2341
Kirby Risk #: 484408
UPC: 78358503795, 783585037950, 00783585037950
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Hubbell
Description
Industry Description

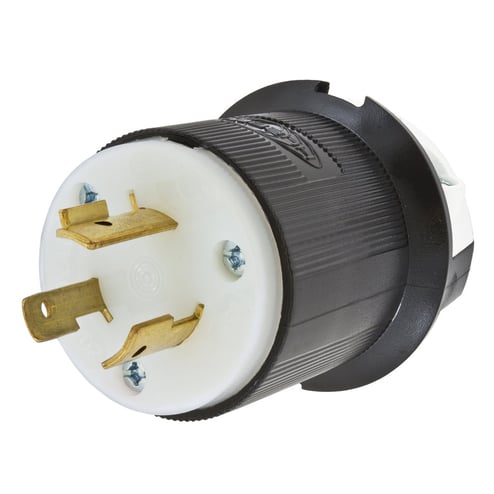

Hubbell Wiring Device Kellems, Locking Devices, TwistLock, Industrial,Male Plug, 20A 480V AC, 2-Pole 3-Wire Grounding, L8-20P, Screw Terminal,Black and White
Modified Industry Description
20A 480V - LOCKING MALE PLUG, 2 POLE, 3 WIRE
AD Description
Wiring Device-Kellems Twist-Lock® Insulgrip® HBL2341 Grounding Locking Plug, 480 VAC, 20 A, 2 Poles, 3 Wires, Black/White
Specifications
| Amperage Rating |
20
|
|---|---|
| Application |
Extra Heavy Duty Industrial
|
| Brand Name |
Hubbell
|
| Color |
Black/White
|
| Connection |
Pressure Screw Terminal
|
| Conductor Size |
#12AWG to #10AWG
|
| Cord_Type |
All Listed Portables
|
| Country of Origin |
US
|
| Enclosure |
IP20
|
| Environmental_Conditions |
Indoor Dry unless Protected by Additional Means
|
| Grade |
Industrial
|
| Material |
Composite
|
| Mounting |
Cord Mounted
|
| NEMA_Configuration |
L8-20P
|
| NEMA_Rating |
NEMA L8-20P
|
| Number_Of_Poles |
2
|
| Number_Of_Wires |
3
|
| Phase |
Single
|
| Poles |
2
|
| Size |
Standard Sized
|
| Special Features |
|
| Standard |
NEMA WD1 and WD5, UL498
|
| Sub_Brand |
Hubbell Wiring Device-Kellems
|
| Temperature_Rating |
-40 to 75
|
| Type |
Grounding
|
| Voltage Rating |
480
|
| Wattage |
9600
|
