Hoffman Hoffman A806CHFTC


Description

Industry Description

Continuous Hinge with Flange Trough Collar, Type 12, 8.00x6.00x4.54, Gray, Steel

Modified Industry Description

8 X 6 X 4.54 IN J BOX HNG CVR

AD Description

Hoffman A806CHFTC A51 Junction Box With Flange Trough Collar, 8 in L x 6 in W x 4.54 in D, Continuous Hinged Cover, NEMA 12/IP65 NEMA Rating, Steel

Vendor Description

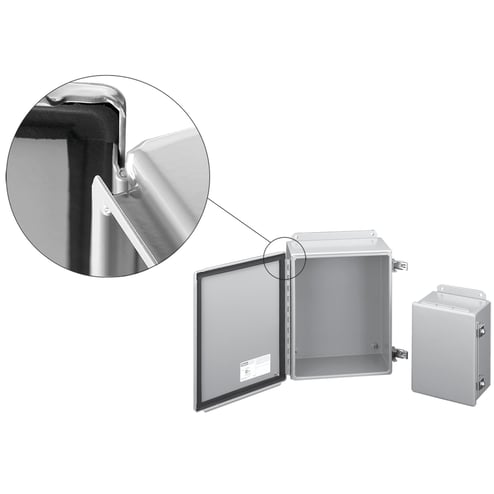

Used in automotive and other applications that require an outward formed external flange trough collar to keep out liquids and contaminants. These enclosures feature tool-to-open latches for securing cover.

Specifications

Application
Industrial
Brand Name
Hoffman
Color
Gray
Country of Origin
MX
Cover_Type
Continuous Hinged
Enclosure
NEMA 4/4X/12
Material
Steel
NEMA_Rating
NEMA 12/IP65
Series
A51
Size
8X6X4
Special Features

  • 16 ga body, 16 or 14 ga door
  • Bonding provision on door
  • External welded on mounting brackets for easy installation
  • Heavy duty, tool-to-open, plated latches
  • Oil-resistant gasket
  • Return flange design, formed around the body opening, diverts liquid contaminants away from the enclosure door opening
  • Seams continuously welded and ground smooth
  • Weldnuts provided for mounting optional panels and terminal block kits
Standard
UL 50, 50E Listed, Type 12, 13, File No. E27567, cUL Listed per CSA C22.2 No. 94, Type 12, 13, File No. E27567, UL 508A Listed, Type 12, 13, File No. E61997, cUL Listed per CSA C22.2 No. 94, Type 12, 13, File No. E61997, NEMA/EEMAC Type 12, 13, CSA, File
Sub_Brand
Hoffman
Type
Continuous Hinge with Flange Trough Collar, Type 12
