Hubbell Hubbell HBL5362SA
Hubbell HBL5362SA
Kirby Risk #: 483878
UPC: 78358506031, 783585060316, 00783585060316
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Hubbell
Description
Industry Description

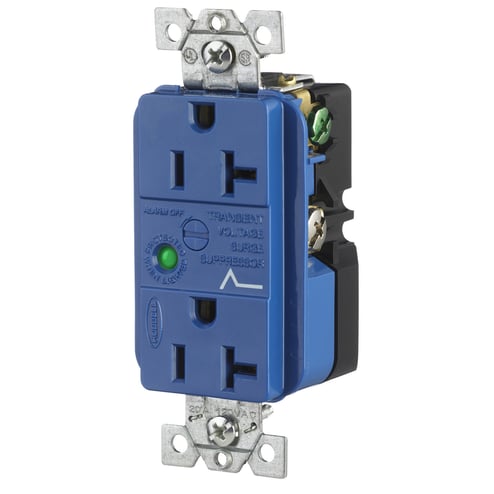

Hubbell Wiring Device Kellems, Surge Protective Devices, SPIKESHIELDTVSS Duplex Receptacle with Light and Alarm, 20A 125V, 5-20R, Blue
Modified Industry Description
20A 125V - BLUE DUPLEX RECEPTACLE W/ LIGHT AND ALARM
AD Description
Wiring Device-Kellems SpikeShield® HBL5362SA Decorator Duplex Outlet Grounding Straight Blade Receptacle With Light and Alarm, 125 VAC, 20 A, 2 Poles, 3 Wires, Blue
Specifications
| Amperage Rating |
20
|
|---|---|
| Application |
Decorator Duplex with Light and Alarm
|
| Brand Name |
Hubbell
|
| Connection |
Terminal Screws
|
| Country of Origin |
CN
|
| Environmental_Conditions |
Indoor dry unless protected by an additional means
|
| Frequency_Rating |
60
|
| Material |
Composite
|
| Mounting |
Mounting Screws
|
| Operating_Temperature |
32 Deg F to 140 Deg F (0 Deg C to 60 Deg C)
|
| Outlet |
Straight Blade
|
| Phase |
1
|
| Response_Time |
Approx 5 ns
|
| Size |
Standard
|
| Special Features |
|
| Standard |
UL 1449 3rd Edition, UL 498
|
| Sub_Brand |
Hubbell Wiring Device-Kellems
|
| Type_Of_Indicators |
LED and Audible Alarm
|
| Type |
Surge Protection Receptacles
|
| Voltage Rating |
125
|
