Hubbell Hubbell HBL26522


Description

Industry Description

Hubbell Wiring Device Kellems, Locking Devices, Hubbellock, Industrial,Flanged Inlet, 60A 600V AC , 4-Pole 5-Wire Grounding, Non NEMA, ScrewTerminal, Blue

Modified Industry Description

60A 600V FLANGED INLET BLUE

AD Description

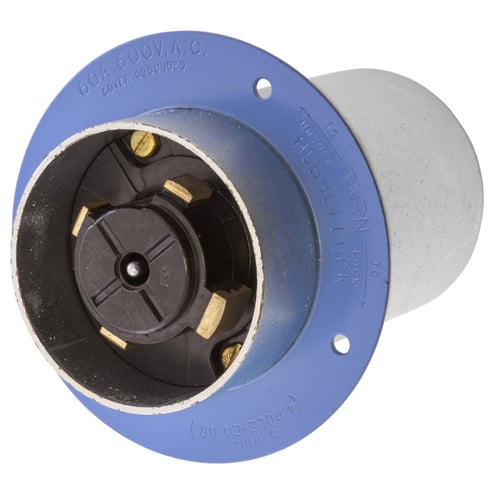

Wiring Device-Kellems Hubbellock® HBL26522 Flanged Inlet, 600 VAC, 60 A, 4 Poles, 5 Wires, Blue

Specifications

Amperage Rating
60
Application
Extra Heavy Duty Industrial
Brand Name
Hubbell
Color
Blue
Connection
Pressure Screw Terminals
Conductor Size
#6AWG to #4AWG
Country of Origin
PR
Environmental_Conditions
Indoor Dry unless Protected by Additional Means
Insulation
Insulated Body
Material
Steel
Mounting
Screw Mount
NEMA_Rating
Non-NEMA
Number_Of_Poles
4
Number_Of_Wires
5
Phase
Multi
Size
Standard Sized Product
Special Features

  • 6 AWG terminal accommodation
  • Box terminals in conjunction with stainless steel terminal screws provide maximum termination strength and dependability
  • Brass blade
  • Certified for current interrupting at full rated current
  • Color coded metallic housing enhances safety and abuse resistance
  • Maximum 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 0.75
  • Molded-in male contacts are resistant to damage and provide a consistently positive connection
  • Nickel-plated brass round head mounting screw material
  • Steel flanged casing material
  • Steel pressure screw zinc plate ground screw material
  • Steel pressure screw zinc plate terminal screw material
  • Terminals identified in accordance with UL 498 (X, Y, Z, white, green)
  • UL 94 VO for receptacles and inlets, HB or better for plugs and connectors flammability
  • Withstands 2000 VAC minimum dielectric voltage
Standard
UL498
Sub_Brand
Hubbell Wiring Device-Kellems
Temperature_Rating
-40 to 75
Type
Flanged Inlet
Voltage Rating
600
Wattage
36
