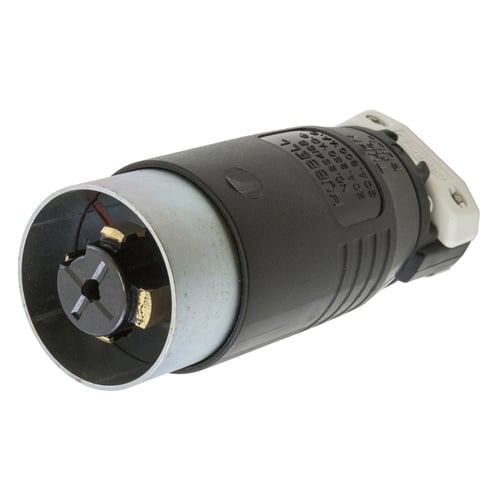

Hubbell Hubbell HBL25415B

Name: Hubbell HBL25415B
Brand: Hubbell
SKU: 483765
Price: 523.78 USD
Availability: InStock

Hubbell HBL25415B

Kirby Risk #: 483765

UPC: 78358501748, 783585017488, 00783585017488

Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)

Brand: Hubbell

Description

Industry Description

Hubbell Wiring Device Kellems, Locking Devices, Hubbellock, Industrial,Male Plug, 30A 600V AC, 4-Pole 5-Wire Grounding, Non NEMA, ScrewTerminal, Blue

Modified Industry Description

30A 600V MALE BLUE

AD Description

Wiring Device-Kellems Hubbellock® HBL25415B Heavy Duty Grounding Locking Plug, 600 VAC/250 VDC, 30 A, 3 Poles, 5 Wires, Black

Amperage Rating	30
Application	Heavy Duty Industrial
Brand Name	Hubbell
Color	Black
Connection	Pressure Terminal Screws
Conductor Size	#14 AWG to #10 AWG
Cord_Type	All Portable
Country of Origin	PR
Environmental_Conditions	Indoor Dry unless Protected by Additional Means
Grade	Industrial
Material	Composite
Mounting	Cord Mounted
NEMA_Rating	Non-NEMA
Number_Of_Poles	3
Number_Of_Wires	5
Phase	3
Size	Standard Sized
Special Features	10 to 6 AWG stranded copper wire terminal accommodation 14 to 10 AWG wire Box terminals in conjunction with screws with pressure pads provide maximum termination strength and dependability Certified for current interrupting at full rated current interrupting Glass reinforced PET cord clamp Indoor dry unless protected by additional means Insulated non-metallic housing enhances safety and abuse resistance Maximum 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75% temperature rise Molded-in male contacts are resistant to damage and provide a consistently positive connection Nylon housing/cord clamp Superior cord grip design protects terminations from excess strain Terminals identified in accordance with UL 498 Three-piece clamp assembly provides maximum strain relief and protects against entry of moisture and dust Withstands 2000 VAC dielectric voltage Zinc plated steel terminal screws
Standard	UL498
Sub_Brand	Hubbell Wiring Device-Kellems
Temperature_Rating	-40 to 75
Type	Heavy Duty Grounding
Voltage Rating	600 VAC/250 VDC
