Hubbell Hubbell HBL20444B
Hubbell HBL20444B
Kirby Risk #: 483746
UPC: 78358501743, 783585017433, 00783585017433
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Hubbell
Description
Industry Description
Hubbell Wiring Device Kellems, Locking Devices, Hubbellock, Industrial,Female Connector Body, 30A 3-Phase Delta 480V AC, 3-Pole 4-WireGrounding, Non-NEMA, Screw Terminal, Red
Modified Industry Description
30A 480V - RED LOCKING FEMALE CONNECTOR, 3 POLE, 4 WIRE
AD Description

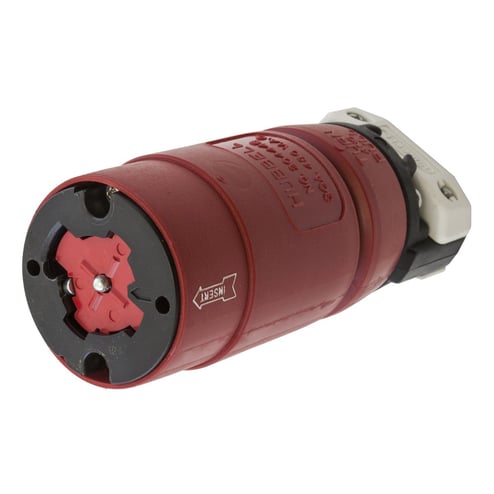

Wiring Device-Kellems Hubbellock® HBL20444B Grounding Heavy Duty Locking Connector, 480 VAC, 30 A, 3 Poles, 4 Wires, Red
Specifications
| Amperage Rating |
30
|
|---|---|
| Application |
Heavy Duty Industrial
|
| Brand Name |
Hubbell
|
| Color |
Red
|
| Conductor Range |
#12AWG - #8AWG
|
| Connection |
Pressure Screw Terminal
|
| Country of Origin |
US
|
| Environmental_Conditions |
Indoor Dry unless Protected by Additional Means
|
| Grade |
Industrial
|
| Insulation |
Insulated Body
|
| Material |
Composite
|
| Mounting |
Cord Mounted
|
| NEMA_Rating |
Non-NEMA
|
| Number Of Conductors |
4
|
| Number_Of_Poles |
3
|
| Number_Of_Wires |
4
|
| Poles |
3
|
| Size |
Standard
|
| Special Features |
|
| Standard |
UL498
|
| Sub_Brand |
Hubbell Wiring Device-Kellems
|
| Temperature_Rating |
-40 to 75
|
| Type |
Grounding Heavy Duty
|
| Voltage Rating |
480
|
