Hoffman Hoffman A36H3012GQRLP


Description

Industry Description

Hinge-Cover with 3-Point Latch or Quick-Release Latches, Type 4X, 36.25x30.25x12.00, Fiberglass

Modified Industry Description

36 IN X 30 IN X 12 IN ENCL FBR GLS

AD Description

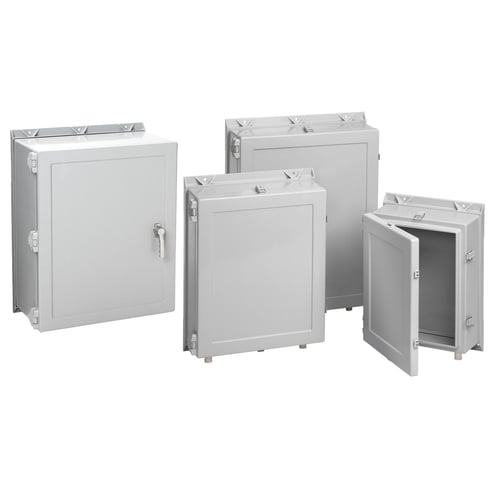

Hoffman A36H3012GQRLP A17WM Medium Enclosure, 36-1/4 in L x 30-1/4 in W x 12 in D, NEMA 4X NEMA Rating, Fiberglass

Vendor Description

A full range of modification options are available for wall-mount fiberglass enclosures, including variable depths to accommodate larger controls. These enclosures feature padlockable polyester latches, or HOFFMAN's exclusive PowerGlide Handle with 3-point latching, for ease of access with increased security.

Specifications

Application
Industrial
Brand Name
Hoffman
Color
Gray
Country of Origin
US
Cover_Type
Hinged
Enclosure
NEMA 3/3R/4/4X/12/13, IP66
Material
Fiberglass
NEMA_Rating
NEMA 4X/IP66
Series
A17WM
Size
36X30X12
Special Features

  • Data pocket is high impact thermoplastic
  • Enclosure may be rotated 180 deg for left and right hinging
  • Fiberglass material is easily punched, drilled, filed or sawed
  • Fiberglass reinforced material has excellent temperature and chemical resistance qualities and exhibits outstanding physical properties
  • Gasket assures watertight and dusttight seal
  • Material is halogen-free
  • Molded in angular sealing flange directs water away from gasket area
  • Plated steel collar studs for mounting optional panels and terminal block kits
  • quick release latch versions feature fiberglass-reinforced polyester latches with integral type 316L stainless steel padlocking hasp
  • Seams are sealed, no holes or knockouts
  • Type 316L stainless steel padlocking power glide handle on 3-point latch versions assures security and a watertight seal while still allowing convenient access
Standard
UL 508A Listed, Type 3, 3R, 4, 4X, 12, 13, File No. E61997, cUL Listed per CSA C22.2 No 94, Type 3, 3R, 4, 4X, 12, 13, File No. E61997, Enclosure flammability evaluated per UL 508A, NEMA/EEMAC Type 3, 3R, 4, 4X, 12, 13, IEC 60529, IP66, Meets NEMA Type 3R
Sub_Brand
Hoffman
Type
Medium
