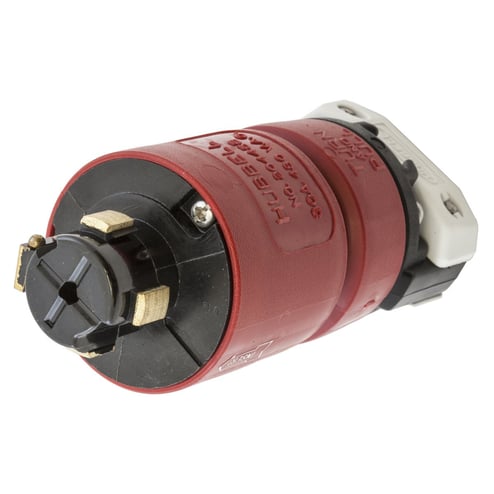

Hubbell Hubbell HBL20445B


Description

Industry Description

Hubbell Wiring Device Kellems, Locking Devices, Hubbellock, Industrial,Male Plug, 30A 3-Phase 480V AC, 3-Pole 4-Wire Grounding, Non-NEMA, ScrewTerminal, Red

Modified Industry Description

60A 480V - RED LOCKING MALE PLUG, 3 POLE, 4 WIRE

AD Description

Wiring Device-Kellems Hubbellock® HBL20445B Grounding Heavy Duty Male Locking Plug, 480 VAC, 30 A, 3 Poles, 4 Wires, Red

Specifications

Amperage Rating
30
Application
Heavy Duty Industrial
Brand Name
Hubbell
Color
Red
Connection
Pressure Terminal Screws
Conductor Size
#10 AWG to #8 AWG
Cord_Type
All Portable
Country of Origin
PR
Environmental_Conditions
Indoor Dry unless Protected by Additional Means
Grade
Industrial
Material
Composite
Mounting
Cord Mounted
NEMA_Rating
Non-NEMA
Number_Of_Poles
3
Number_Of_Wires
4
Phase
Three
Poles
3
Size
Standard Sized
Special Features

  • 10 AWG terminal accommodation
  • Auto ejects improperly made connection
  • Black thermoset blade holder
  • Box terminals in conjunction with screws with pressure pads provide maximum termination strength and dependability
  • Brass blade
  • Certified for current interrupting at full rated current
  • Copper lug terminals with steel set screws terminal screw and ground screw
  • Glass reinforced PET cord clamp
  • Insulated non-metallic housing enhances safety and abuse resistance
  • IP20 moisture resistance
  • Maximum 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75% temperature rise
  • Molded male contacts are resistant to damage and provide a consistently positive connection
  • Round portable service cords of diameters commensurate with the device rating as defined in UL standard 62, CSA C22.2 No. 49 cord accommodation
  • Stainless steel, multi-drive cord clamp screw, body holding screw
  • Three-piece clamp assembly provides maximum strain relief and protects against entry of moisture and dust
  • Withstands 2000 VAC dielectric voltage
Standard
UL498
Sub_Brand
Hubbell Wiring Device-Kellems
Temperature_Rating
-40 to 75
Type
Grounding Heavy Duty Male
Voltage Rating
480
