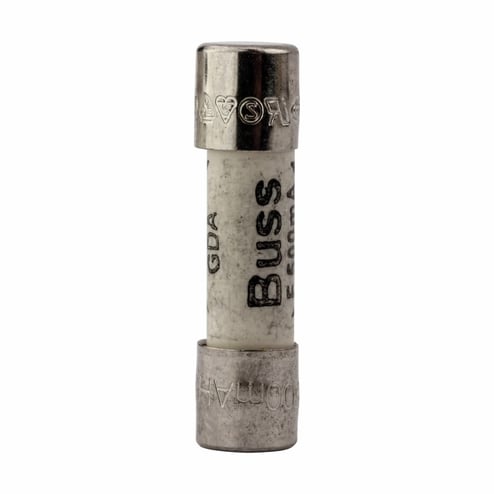

Bussmann Bussmann GDA-63MA


Description

Industry Description

Fast-Acting, High-Breaking Capacity Fuses, 63 mA, Electronic circuits, Ferrule end X ferrule end, 50 Hz, 1500A at 250 Vac, Electronic, European (IEC), 250 Vac, Ceramic tube with silver-plated brass endcaps, Typical DC cold: 39 ohms, Typical

Modified Industry Description

63MA 250V CERAMIC FAST ACTING FUSE 5 X 20MM

AD Description

Bussmann GDA-63MA Small Dimension Fast Acting Fuse, 63 mA, 250 VAC/32 VDC, 1500 A Interrupt, Cylindrical Body

Specifications

Amperage Rating
63
Application
Ind Facilities & Factories - Facility: Safety and Security Systems
Brand Name
Bussmann
Connection
Ferrule End X Ferrule End
Country of Origin
CN
Element
Single
Frequency_Rating
50
Interrupt_Rating
1.5
Material
Ceramic
Package_Quantity
5
Response_Time
60
Special Features

  • 1.5 kA at 250 VAC interrupt rating
  • 1500 A at 250 VAC interrupt rating
  • 60 min minimum at 1.5 In, 30 min maximum at 2.1 In, 10 ms minimum and 3 s maximum at 2.75 In, 3 ms minimum and 300 ms maximum at 4 In, 20 ms maximum at 10 In response time
  • Fast acting for maximum component protection
  • Fast acting for maximum protection
  • High break capacity for use in higher fault energy electronic circuitry
  • Silver plated brass end caps
Standard
VDE,CE Marked,CCC Marked
Sub_Brand
Bussmann Series
Type
High Breaking Small Dimension
Voltage Rating
250
