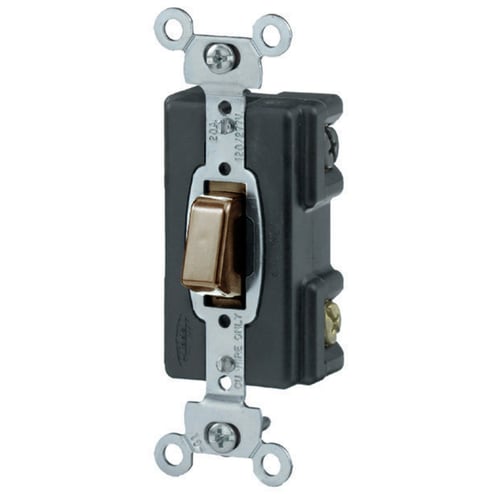

Hubbell Hubbell HBL1281MO


Description

Industry Description

Hubbell Wiring Device Kellems, Switches and Lighting Controls,Industrial Grade, PresSwitch, General Purpose AC, Momentary Open SinglePole, 20A 120/277V AC, Screw Terminals, Brown

Modified Industry Description

BROWN 20A 120-277VAC SP MOM PRESS

AD Description

Wiring Device-Kellems PresSwitch® HBL1281MO 2-Position Toggle Switch, 120 to 277 VAC, 20 A, 2 hp

Specifications

Action
Snap
Actuator
Push Button
Amperage Rating
20
Application
Heavy Duty Industrial
Brand Name
Hubbell
Color
Brown
Connection
Terminal Screws
Contact_Configuration
Two Position
Country of Origin
PR
Environmental_Conditions
Indoor Dry unless Protected by Additional Means
Mounting
Mounting Screws
Number_Of_Poles
1
Operating_Cycles
10k
Operating_Temperature
Max Continuous- 75 Degrees C, Minimum- -40 Without Impact
Size
Standard Sized
Special Features

  • 1 hp at 120 VAC, 2 hp at 208/240/277 VAC power rating
  • 14 to 10 AWG solid and stranded copper wire only
  • 30 deg C maximum at rated current temperature rise
  • Brown toggle color
  • Circuit normally open
  • Large brass binding head screws with deep slots
  • Minimum 4.8 times rated current for 100 cycles overload
  • Specification grade
  • Strip gauge for accurate wiring
  • Thermoset top/base, nylon actuator, silver alloy contacts, brass terminal/ground screw
  • Thread cleaning captive mounting screw
  • Withstands 1500 VAC minimum dielectric voltage
Standard
CSA Only
Sub_Brand
Hubbell Wiring Device-Kellems
Type
PresSwitches
Voltage Rating
120/277
Wattage
5,540
