Hubbell Hubbell HBL8200HG
Hubbell HBL8200HG
Kirby Risk #: 483515
UPC: 78358501619, 783585016191, 00783585016191
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Hubbell
Description
Industry Description

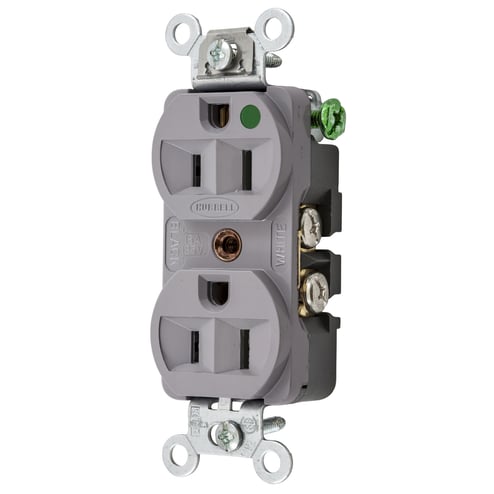

Hubbell Wiring Device Kellems, Straight Blade Devices, Receptacles,Duplex, Compact Hospital Grade, 2-Pole 3-Wire Grounding, 15A 125V, 5-15R, Gray, Single Pack
Modified Industry Description
15A125V GRAY HOSP DPLX RCPT NEMA
AD Description
Wiring Device-Kellems HBL® HBL8200HG Duplex Extra Heavy Duty Self-Grounding Traditional Straight Blade Receptacle, 125 VAC, 15 A, 2 Poles, 3 Wires, Gray
Specifications
| Amperage Rating |
15
|
|---|---|
| Application |
Slender/Compact Hospital Grade
|
| Brand Name |
Hubbell
|
| Color |
Gray
|
| Connection |
Back and Side Wired Terminal Screws
|
| Conductor Size |
#14 AWG to #12 AWG
|
| Country of Origin |
US
|
| Dielectric_Strength |
Withstands 2,000V minimum
|
| Environmental_Conditions |
Indoor Dry unless Protected by Additional Means
|
| Grade |
Hospital
|
| Material |
Thermoplastic
|
| Mounting |
Screw Mount
|
| NEMA_Configuration |
5-15R
|
| NEMA_Rating |
5-15R
|
| Number_Of_Poles |
2-Pole
|
| Number_Of_Wires |
3-Wire Grounding
|
| Phase |
Single Phase Motors
|
| Size |
Slender/Compact
|
| Special Features |
|
| Standard |
NEMA WD1 and WD5, UL 498
|
| Sub_Brand |
Hubbell Wiring Device-Kellems
|
| Type |
Duplex
|
| Voltage Rating |
125
|
| Wattage |
1875Watts
|
