Hoffman Hoffman A72XM7824FTC

Name: Hoffman A72XM7824FTC
Brand: Hoffman
SKU: 483280
Price: 10372.88 USD
Availability: InStock

Hoffman A72XM7824FTC

Kirby Risk #: 483280

UPC: 78351020799, 783510207991, 00783510207991

Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)

Brand: Hoffman

Description

Industry Description

Heavy-Duty Free-Stand Disconnect Enclosure, Type 12, 72.12x78.50x24.12, Steel

Modified Industry Description

DISCONNECT ENCL. 72.12X77.75X2

AD Description

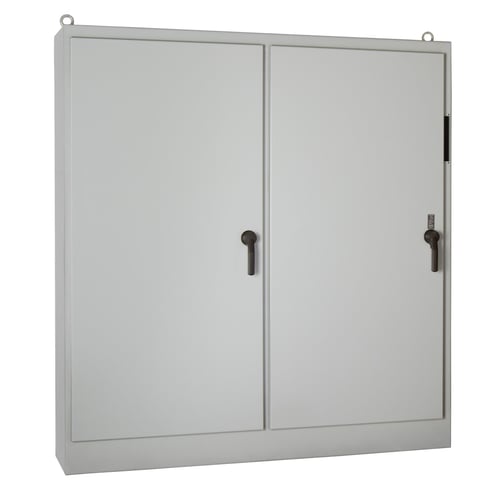

Hoffman A72XM7824FTC A28M2 2-Door Heavy Duty Disconnect Enclosure With Panel, 72.12 in L x 78-1/2 in W x 24.12 in D, NEMA 12/IP55 NEMA Rating, Steel

Vendor Description

Simple, heavy-duty and cost-effective, this disconnect enclosure can be ordered with one to six doors to fit a range of applications.

Application	Arc Flash Safety; Controls and Drives; Power Distribution
Color	White
Country of Origin	MX
Finish	Polyester Powder Coated
Length1	72.12
Material	Steel
Mounting_Type	Free Stand
NEMA_Rating	NEMA 12/IP55
Series	A28M2
Size	72.12X78.50X24.12 in
Special Features	0.121 in 11 ga steel Body flange trough excludes liquids and contaminants Body stiffeners in larger enclosures for extra rigidity Concealed, easy to remove hinges Data pocket is high impact thermoplastic Defeater on primary door requires a screwdriver to open FTC models include removable painted 10 ga steel panels which mount on collar studs Heavy duty 3-point latching mechanism operated by padlocking handle on all doors Heavy duty lifting eyes anchor into reinforced top Master door is far right hand door on all enclosures Mechanical interlock activated by master door prevents slave doors from being opened first, doors can be closed in any order Oil-resistant gasket Removable centerposts permit easy panel installation Seams continuously welded and ground smooth Universal cutout on right flange provides mounting for most disconnect operators by using operator adapters
Standard	UL 508A Listed, Type 12, File No. E61997, cUL Listed per CSA C22.2 No. 94, Type 12, File No. E61997, NEMA/EEMAC Type 12, CSA File No. 42186: Type 12 , IEC 60529, IP55
Sub_Brand	Hoffman
Type	2-Door Heavy Duty
