Hoffman Hoffman A1287JFGR


Description

Industry Description

Screw- or Hinge-Cover with Quick-Release Latch, Type 4X, 11.50x8.00x6.69, Fiberglass

Modified Industry Description

11.5 X 8 X 6.69 IN FIBERGLASS NEMA 4 ENCLOSURE, SCREW COVER

AD Description

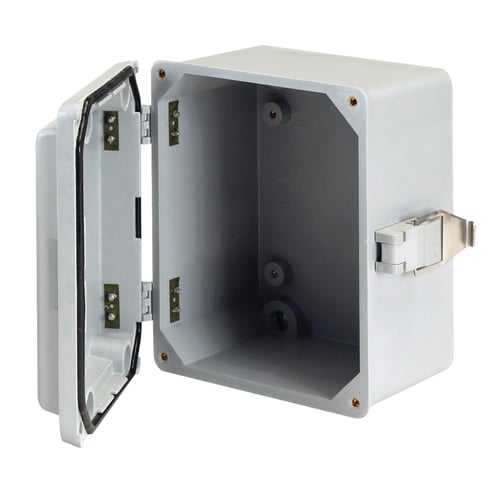

Hoffman A1287JFGR A50 Junction Box, 11-1/2 in L x 8 in W x 6.69 in D, Hinged Solid/Screw Cover, NEMA 4X/IP66 NEMA Rating, Fiberglass

Vendor Description

Able to withstand harsh environments, these small enclosures feature a simple, traditional non-metallic design that is suitable for a broad range of applications.

Specifications

Application
Able to withstand harsh environments, these small enclosures feature a simple, traditional non-metallic design that is suitable for a broad range of applications.
Brand Name
Hoffman
Color
Light Gray
Country of Origin
US
Cover_Type
Hinged Solid/Screw
Cubic_Capacity
615 cubic in
Material
Fiberglass
NEMA_Rating
NEMA 4X/IP66
Series
A50
Size
11.50X8.00X6.69 in
Special Features

  • Compression molded fiberglass material has excellent temperature and chemical resistance qualities and exhibits outstanding physical properties
  • Cover securely fastens to the body with four captivated type 316 stainless steel cover screws
  • Fiberglass material is easily punched, drilled, filed or sawed
  • Material is halogen-free
  • Polycarbonate windows are permanently bonded in place
  • Screw cover enclosures have easily removable covers attached to body with internal plated steel hinges
  • Sealing washers are furnished with enclosure
  • Seamless foam in place gasket assures a watertight and dust tight seal
  • Threaded internal bosses provided for mounting optional panels and terminal block kits
Standard
Mounting brackets required to meet UL/CSA external mounting requirements., UL 508A Listed, Type 3, 3R, 4, 4X, 12, 13, File No. E61997, cUL Listed per CSA C22.2 No 94, Type 3, 3R, 4, 4X, 12, 13,, File No. E61997, Enclosure flammability evaluated per UL 508
Sub_Brand
Hoffman
Type
Screw- or Hinge-Cover with Quick-Release Latch, Type 4X
