O-Z/Gedney O-Z/Gedney 24200
O-Z/Gedney 24200
Kirby Risk #: 482362
UPC: 78312671250, 783126712506, 00783126712506
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: O-Z/Gedney
Description
Industry Description

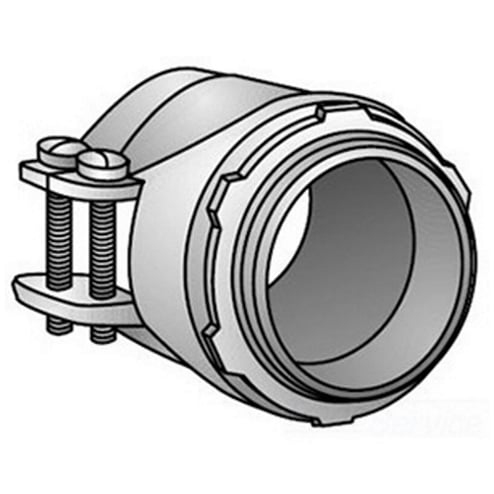

OZ-Gedney Type 24 Center Stopped Straight Squeeze Connector, Size: 2 IN, Connection: Male NPS Hub X Screw Clamp, Conductor Range: 2-3/16 - 2-3/8 IN, Malleable Iron, Finish: Zinc Electroplated, Dimensions: 2 IN Length X 3-5/16 IN Width, 3/4 IN Threa
Modified Industry Description
2 IN ST SQUEEZE CONN
Specifications
| Application |
For Armored Cable And Flexible Metal Conduit
|
|---|---|
| Connection |
Male NPS Hub X Screw Clamp
|
| Country of Origin |
MX
|
| Dimensions |
2 in L x 3-5/16 in W
|
| Finish |
Zinc Electroplated
|
| Length1 |
8.7000
|
| Material |
Malleable Iron
|
| Size |
2
|
| Special Features |
|
| Standard |
Third Party Certification: UL File Number E-11852, UL Listed (Flexible Metal Conduit), CSA 009795 Armored Cable, Hazardous Location: NEC 501-4(b), Class I, Division II, NEC 350-5 (As A Grounding Means), Applicable Third Party Standards: UL 514B, CSA C22.2 No.18, Federal Specification W-F-406E, NEMA : FB-1
|
| Type |
Type 24 Straight
|
