O-Z/Gedney O-Z/Gedney 4Q150


Description

Industry Description

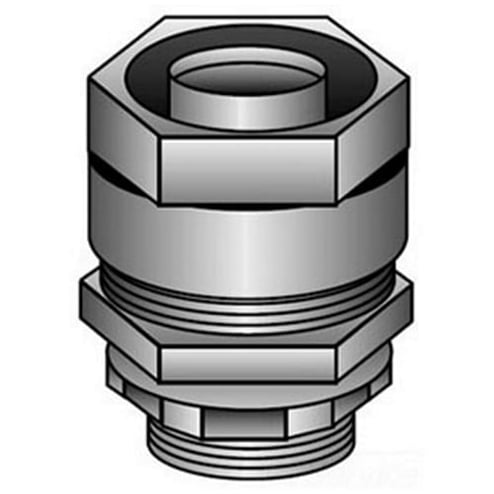

OZ-Gedney Type 4Q Liquid Tight Straight Connector, Size: 1-1/2 IN, Connection: Compression X Tapered MNPT Hub, Malleable Iron Body And Nut, Steel Ferrule, Finish: Zinc Electroplated, NEMA Rating: NEMA 4, 2-3/4 IN Width, 2 IN Height, Third Party Cer

Modified Industry Description

1 1&2 IN LIQ TITE CONN

Specifications

Application
For Liquidtight Flexible Metal Conduit
Connection
Compression X Tapered MNPT Hub
Country of Origin
MX
Dimensions
2 in H x 2-3/4 in W
Finish
Zinc Electroplated
Length1
5.6000
Material
Malleable Iron
NEMA_Rating
NEMA 4
Series
4Q Series
Size
1-1/2
Special Features

  • Bonding wedge locknuts are recommended in hazardous locations
  • Compact, slim diameter with small turning radius
  • Inspection windows in ferrule to ensure full conduit engagement
  • Intrinsically safe
  • Long ferrule prevents pullout and tight bend conduit "pop-out"
  • Reusable ferrule
  • Suitable for wet locations
  • Tapered threaded male NPT hub
Standard
Third Party Certification: UL File Number 11853, CSA 009795, Applicable Third Party Standards: UL 514B, CSA C22.2 No.18, Federal Specification W-F-406E, NEMA : FB-1, Hazardous Locations: Class I, Division 2 Per NEC 501.4(B), Class I, Zone 2 Per NEC 505.15(C)(2), Class II, Division 1 Per NEC 502.4(A)(1)(e), Class II, Division 2 Per NEC 502.4(B)(2), Class III, Division 1 Per NEC 503.3(A)(2), Class III, Division 2 Per NEC 503.3(B), Intrinsically Safe Per NEC 504.20
Type
Concretetight Liquidtight Oiltight Raintight
