O-Z/Gedney O-Z/Gedney 0ZGFDC150


Description

Industry Description

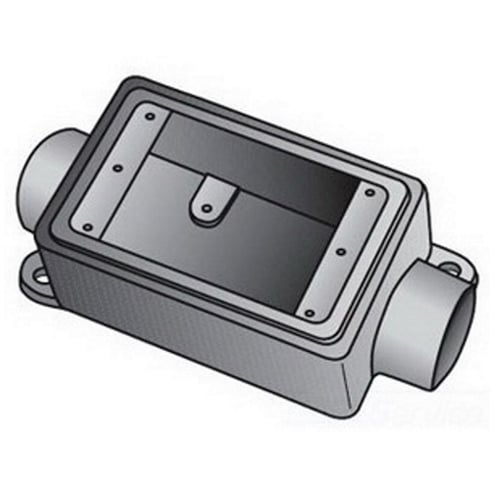

OZ-Gedney Type FDC Deep Cast Device Box, Number Of Outlet: 2, Gray Iron, Size: 1/2 IN, Ridge Top Construction, Cable Entry: (2) 1/2 IN Hubs, 28 CU-IN Capacity, No, 2-15/16 IN Width, 3-1/16 IN Depth, 4-11/16 IN Height, Finish: Zinc Electroplated With Aluminum Enamel, Third Party Certification: UL File Number E-18095, CSA 009795, Applicable Third Party Standards: UL 514A, CSA C22.2 No.18, Federal Specification A-A-50563, NEMA : FB-1, For Rigid Conduit And IMC

Modified Industry Description

FDC 1 GANG CAST BOX 1/2 IN HUB

Specifications

Application
For Rigid Conduit And IMC
Color
Gray
Construction
Ridge Top
Country of Origin
MX
Dimensions
4-11/16 in H x 2-15/16 in W x 3-1/16 in D
Finish
Tri-Coated
Length1
6.5000
Material
Feraloy® Iron Alloy
Mounting_Type
Lug
Size
1/2
Special Features

  • Accommodate wiring devices such as switches and receptacles
  • Accurately tapped, tapered threads for tight, rigid joints and ground continuity
  • Allow connections for branch conduit runs
  • Blank bodies for special conduit entrance arrangements
  • Both malleable iron and aluminum boxes have ridge top construction for positive cover/gasket/box fit
  • Complete selection of covers, receptacles, plugs, gaskets and accessories
  • Corrosion-resistant ideal for indoor and outdoor installations
  • Covers have captive stainless steel screws to speed installation, prevents loss of screws
  • FD boxes take devices exceeding 1.63/41.4 mm in depth under fastening ears
  • FS and FD boxes take standard flush wiring devices
  • Malleable iron for high tensile strength and ductility provides greater resistance to impact and shock
  • Permit access to conductors for maintenance
  • Provide excellent service in areas where boxes are subject to rough usage
  • Provide openings for making splices
  • Ridge top construction
  • Serve as pull boxes for conductors
  • Smooth, rounded integral bushing in each hub protects conductor insulation
  • Weatherproof, raintight and dust tight when used with cast gasketed covers
  • Without knockouts
Standard
Third Party Certification: UL File Number E-18095, CSA 009795, Applicable Third Party Standards: UL 514A, CSA C22.2 No.18, Federal Specification A-A-50563, NEMA : FB-1
Type
Type FD Deep Heavy Duty
