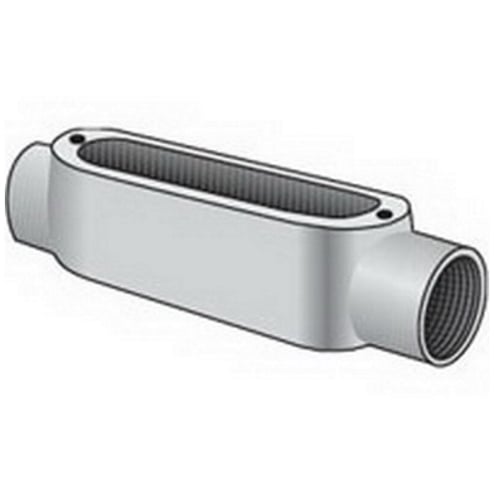

O-Z/Gedney O-Z/Gedney C75


Description

Industry Description

OZ-Gedney Spec 5 Type C Conduit Body, 3/4 IN Hub, Length: 6-1/8 IN, 1-5/8 IN Width, 1-5/8 IN Height, Malleable Iron, Finish: Zinc Electroplated With Aluminum Enamel, Connection: Tapered FNPT, 3 (6 AWG) Conductors, 7 CU-IN Volume, Third Party Certific

Modified Industry Description

3/4 IN IRON COND BODY TYPE C

Specifications

Application
For Rigid Conduit And IMC
Connection
Tapered FNPT
Country of Origin
MX
Dimensions
6-1/8 in L x 1-5/8 in W x 1-5/8 in H
Enclosure
NEMA FB-1
Finish
Zinc Electroplated/Aluminum Enamel
Length1
8.5000
Material
Malleable Iron
Mounting_Type
Surface
Special Features

  • Accurately tapped, tapered threads for tight, rigid joints and excellent ground continuity
  • Complete interchangeability with other manufacturers style 5 or 35 conduit bodies
  • Form 35™ malleable iron UNILETS™ are high tensile strength and ductility
  • High corrosion resistance, high impact and shock resistance
  • Internal volume and maximum wire capacity clearly marked on castings
  • Malleable iron suitable for use in concrete
  • Raintight when an Appleton™ cover and gasket are installed
  • Raintight when used with gasketed covers
  • Sizes with flat back design ideal where fitting is mounted flat against surface
  • Smooth, rounded integral bushing in hubs protects conductor insulation
  • Tapered threaded hubs (NPT)
Standard
Third Party Certification: UL File Number E-18095, CSA LR-9795, Applicable Third Party Standards: UL 514A, CSA C22.2 No.18, Federal Specification Number A-A-50563, Class 1, Division 2; NEMA : FB-1, FB-2.10
Sub_Brand
Spec 5
Type
Type C
