O-Z/Gedney O-Z/Gedney ACV938
O-Z/Gedney ACV938
Kirby Risk #: 482040
UPC: 78312602065, 783126020656, 00783126020656
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: O-Z/Gedney
Description
Industry Description

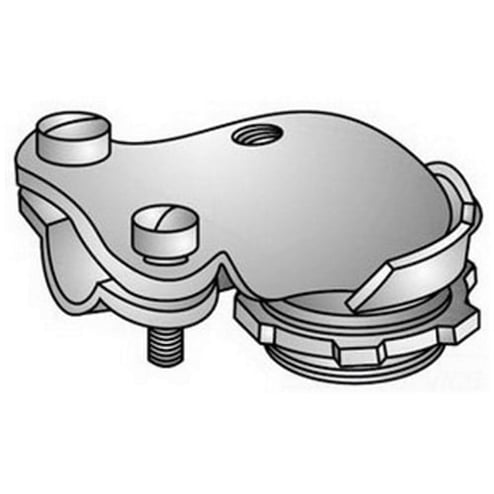

OZ-Gedney Type ACV 90 DEG Center Stopped 2-Screw Clamp Connector, Size: 3/8 IN (1/2 IN KO), Connection: Male NPS Hub X Set Screw, Conductor Range: 23/64 - 21/32 IN, Malleable Iron, Finish: Zinc Electroplated, 7/16 IN Thread Length, Dimension A: 1-5/16 IN, Dimension B: 13/16 IN, Third Party Certification: UL File Number E-11852 (Armored Cable And Flexible Metal Conduit), Hazardous Location: NEC 501-4(b) Class I Division II, NEC 350-5 (Grounding Means), CSA 9795 And 11584 (Armored cable and Flexible Metal Conduit), Applicable Third Party Standards: UL 514B, CSA C22.2 No.18, Federal Specification W-F-406E, NEMA : FB-1, For Armored Cable, Flexible Metal Conduit, Non-Metallic And Service Entrance Cable
Modified Industry Description
3/8 IN 90 DEG CONN AC/FMC
Specifications
| Application |
For Armored Cable, Flexible Metal Conduit, Non-Metallic And Service Entrance Cable
|
|---|---|
| Connection |
Male NPS Hub X Set Screw
|
| Country of Origin |
MX
|
| Finish |
Zinc Electroplated
|
| Length1 |
7.8000
|
| Material |
Malleable Iron
|
| Size |
3/8 IN (1/2 IN KO)
|
| Special Features |
|
| Standard |
Third Party Certification: UL File Number E-11852 (Armored Cable And Flexible Metal Conduit), Hazardous Location: NEC 501-4(b) Class I Division II, NEC 350-5 (Grounding Means), CSA 9795 And 11584 (Armored cable and Flexible Metal Conduit), Applicable Third Party Standards: UL 514B, CSA C22.2 No.18, Federal Specification W-F-406E, NEMA : FB-1
|
| Type |
Type ACV
|
