O-Z/Gedney O-Z/Gedney AC150
O-Z/Gedney AC150
Kirby Risk #: 482034
UPC: 78312601545, 783126015454, 00783126015454
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: O-Z/Gedney
Description
Industry Description

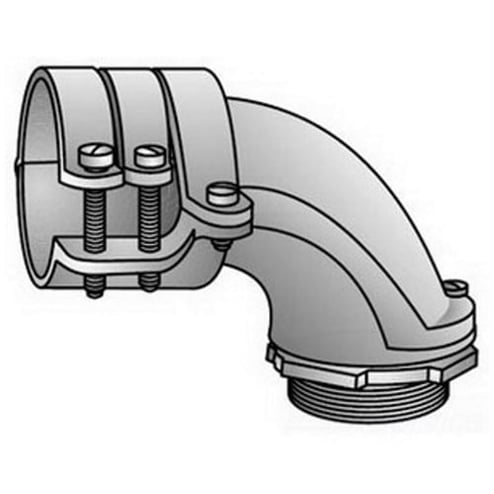

OZ-Gedney Type AC 90 DEG Center Stopped Squeeze Connector, Size: 1-1/2 IN, Connection: Male NPS Hub X Screw Clamp, Conductor Range: 1-3/4 - 2 IN, Malleable Iron, Finish: Zinc Electroplated, 9/16 IN Thread Length, Dimension A: 3-13/16 IN, Dimension B
Modified Industry Description
1-1/2 IN 90 DEG CONN AC/FMC
AD Description
O-Z/Gedney AC150 Type AC Squeeze Conduit Connector With Locknut, 1-1/2 in Trade, 1-3/4 to 2 in Cable Openings, For Use With Armored/FMC/Non-Metallic/Service Entrance Cable, Malleable Iron, Zinc Electroplated
Vendor Description
O-Z/Gedney cable connectors are used to ground and secure armored cable, aluminum sheathed cable, non-metallic sheathed cable, flexible metal conduit and interlocked metal clad cables to boxes and enclosures and to secure NM and SE Cables to boxes and enclosures. All available cable connectors have male NPS threaded hubs. Single and duplex versions available.
Specifications
| Application |
For Armored Cable, Flexible Metal Conduit, Non-Metallic And Service Entrance Cable
|
|---|---|
| Connection |
Male NPS Hub X Screw Clamp
|
| Country of Origin |
MX
|
| Finish |
Zinc Electroplated
|
| Length1 |
6.9000
|
| Material |
Malleable Iron
|
| Size |
1-1/2
|
| Special Features |
|
| Standard |
Third Party Certification: UL File Number E-11853 (Flexible Metal Conduit), Hazardous Location: NEC 501-4(b) Class I Division II, NEC 350-5 (Grounding Means), CSA 9795 And 11584 (Armored Cable And Flexible Metal Conduit), Applicable Third Party Standards: UL 514B, CSA C22.2 No.18, Federal Specification W-F-406E, NEMA : FB-1
|
| Type |
Type AC
|
