Thomas & Betts Thomas & Betts MSA10024


Description

Industry Description

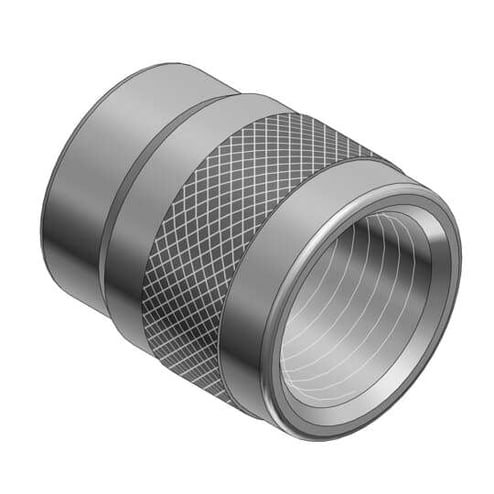

Steel Liquidtight Adapter, 1 Inch NPT Thread to Thread Size 1-7/16 Inch-18 UNEF-2B

Modified Industry Description

1 IN STEEL LIQUIDTIGHT ADAPTER

AD Description

T&B® MSA10024 Liquidtight Conduit Adapter, 1 in, NPT/UNEF-2B Thread, Aluminum

Vendor Description

T&B® liquidtight fittings for flexible conduits are suitable for a wide range of installations. Our liquidtight fittings are designed to stand up to demanding wet and corrosive environments, including power generation, petrochemical, paper mills, food, beverage, pharmaceutical plants and anywhere high performance is required.

Specifications

Application
Suitable for use in hazardous location where general purpose equipment is specifically permitted by the NEC; Class I Div 2; Class II Div 1 & 2; Class III Div 1 & 2, NEC 501-4(b); 502-4(a)(b); 503-3(a)(b)
Brand Name
Thomas & Betts
Country of Origin
CA
Material
Aluminum
Special Features

  • 24, 28 AN-MS fitting shell
  • Mechanical adapter with internal threads to mate with NPT threaded fittings and MS type connectors
  • Provides high quality seal
  • Resilient material flows and seals rough surfaces
  • Steel retainer protects seal from extruding out under torque and limits compression to an optimum predetermined value
  • Thread to metric
  • Threaded fitting provides a tight seal against oil
  • When used with an externally threaded fitting provides a tight seal against oil, fumes or moisture at the knockout opening
Standard
UL Listed, CSA
Sub_Brand
Thomas & Betts
Type
Adapters
Width_2
4.4000
Width_3
4.4000
