Thomas & Betts Thomas & Betts 54913BE


Description

Industry Description

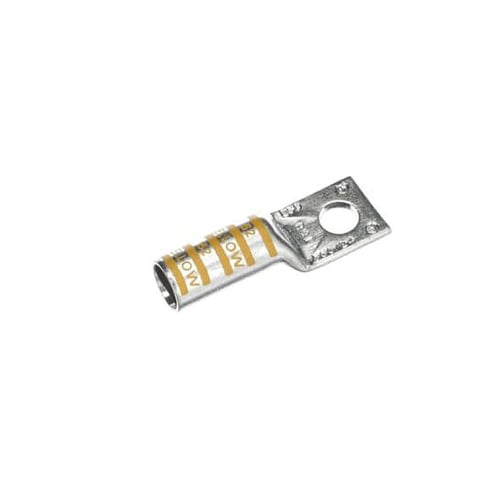

Copper One-Hole Lug, Long Barrel, Blind End, Tongue Length 1.25 Inches, Max 35kV, Wire Size 250 kcmil, 1/2 Inch Bolt Size, Tin Plated, Die Code 62, Die Color Code Yellow

Modified Industry Description

CONNECTOR,CU LONG BARREL

AD Description

Color-Keyed® 54913BE 54900 1-Hole Compression Lug, 250 kcmil Copper Conductor, Die Code: 62, 1/2 in Stud, Copper

Vendor Description

The Color-Keyed® compression system ensures a proper crimp onto the conductor by matching the right connector to the right tool and die, using a color coding system that was developed and introduced to the industry by T&B®. When using the Color-Keyed® compression system with our Blackburn® line of compression connectors, the installer can count on a reliable, high quality connection.

Specifications

Brand Name
Thomas & Betts
Cable_Size
250 kcmil
Color
Yellow
Conductor Material
Copper
Conductor Size
250
Country of Origin
MX
Finish
Tin Plated
Insulation
None
Material
Copper
Number_Of_Holes
1
Package_Quantity
10
Special Features

  • Color-Keyed® connectors are banded by colored stripes or engraving to indicate location of die on connector for compression
  • Connection by compression
  • Connectors have colored bands or colored dots that correspond to color markings on the dies
  • High conductivity wrought copper construction
  • High quality connection at a low installed cost
  • Tin plated finish
Standard
UL E9809
Stud_Size
1/2
Sub_Brand
Color-Keyed
Tongue_Angle
Straight
Type
1-Hole
Voltage Rating
600 VAC to 35 kV
