Thomas & Betts Thomas & Betts MSC500
Thomas & Betts MSC500
Kirby Risk #: 478643
UPC: 78621081774, 786210817743, 50786210817748, 60786210817745
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Thomas & Betts
Description
Industry Description
Motor Stub Splice Insulator 350 AWG - 500 kcmil, Bolt Max Length 1-3/4 inch
Modified Industry Description
Motor Stub Splice Insulator 350 - 500 KCMIL 1 3/4 IN LONG
AD Description

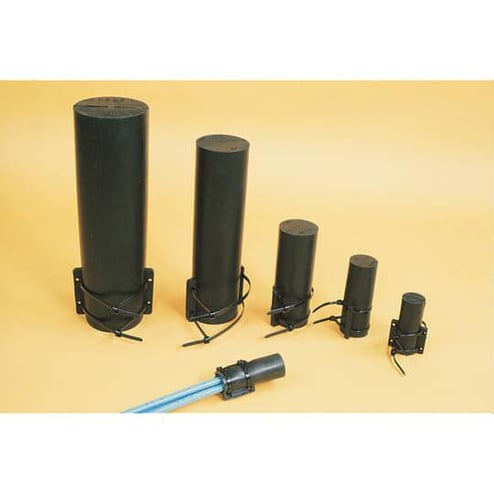

Shrink-Kon® MSC500 Motor Stub Splice Insulator With Insulating Cover, 600 VAC, 350 to 500 kcmil Wire, 1-3/4 in L Bolt, Neoprene Elastomer
Vendor Description
This innovative product has been designed to insulate motor stub splices quickly, easily, and dependably. It consists of a boot-type insulator with integral Ty-Rap® cable ties. To install, simply position the insulator over the bolted splice and tighten the cable ties. That all there is to it. It produces uniform, high-quality installations every time in about 30 seconds. The completed installation is immediately ready for inspection and use. If required, the insulator can be easily removed. Simply snip the cable ties and slide the insulator off the splice. It leaves no sticky residue.
Specifications
| Application |
Insulate motor stub splices quickly and dependably.
|
|---|---|
| Brand Name |
Thomas & Betts
|
| Color |
Black
|
| Country of Origin |
CN
|
| Material |
Neoprene Elastomer
|
| Package_Quantity |
5
|
| Special Features |
|
| Sub_Brand |
Shrink-Kon
|
| Type |
Splice Insulators and Insulating Covers
|
| Voltage Rating |
600
|
