Thomas & Betts Thomas & Betts 54805
Thomas & Betts 54805
Kirby Risk #: 478242
UPC: 78621054805, 786210548050, 30786210548051
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Thomas & Betts
Description
Industry Description
Copper Two-Way Splice, Long Barrel, Max 35kV, Wire Size #6 AWG, Length 1.75 Inches, Diameter 0.31 Inches, Tin Plated, Die Code 24, Die Color Code Blue
Modified Industry Description
6AWG 2WAY COP CONN
AD Description

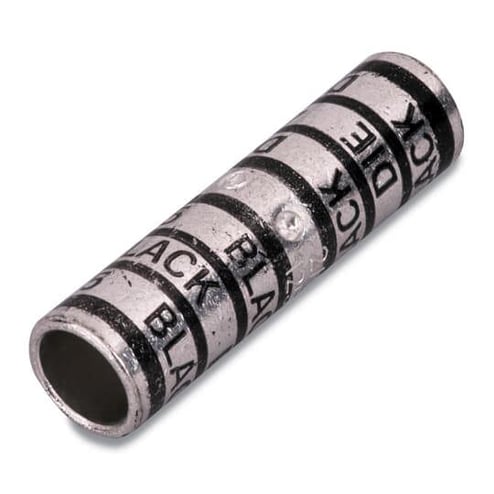

Color-Keyed® 54805 2-Way Long Barrel Splice Connector, 6 AWG Copper Conductor, Die Code: 24, 1-3/4 in L, Copper
Vendor Description
Color-Keyed® compression system ensures a proper crimp onto the conductor by matching the right connector to the right tool and die, using a color coding system that was developed and introduced to the industry by T&B®.
Specifications
| Application |
Applications certified to 600 V and recommended up to 35 kVÂ¥
|
|---|---|
| Brand Name |
Thomas & Betts
|
| Color |
Blue
|
| Conductor Type |
Copper
|
| Conductor Size |
6
|
| Country of Origin |
MX
|
| Die_Code |
24
|
| Finish |
Tin-Plated
|
| Insulation |
None
|
| Material |
Copper
|
| Outside_Diameter |
0.31
|
| Package_Quantity |
50
|
| Special Features |
|
| Standard |
UL E9809
|
| Sub_Brand |
Color-Keyed
|
| Type |
2-Way Long Barrel
|
| Voltage Rating |
600
|
