Thomas & Betts Thomas & Betts 54104
Thomas & Betts 54104
Kirby Risk #: 478227
UPC: 78621054104, 786210541044, 30786210541045
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Thomas & Betts
Description
Industry Description

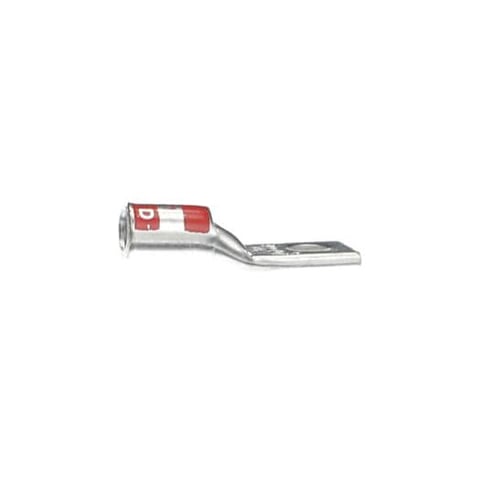

Copper One-Hole Lug, Standard Barrel, Peep Hole, Max 35kV, Wire Size #8 AWG Wire, #10 Bolt Size, Tin Plated, Die Code 21, Die Color Code Red
Modified Industry Description
CU ONE HOLE LUG 8 AWG 10 BOLT RED
AD Description
Color-Keyed® 54104 54100 1-Hole Compression Lug, 8 AWG Copper Conductor, Die Code: 21, 10 AWG Stud, Copper
Vendor Description
The Color-Keyed® compression system ensures a proper crimp onto the conductor by matching the right connector to the right tool and die, using a color coding system that was developed and introduced to the industry by T&B®. When using the Color-Keyed® compression system with our Blackburn® line of compression connectors, the installer can count on a reliable, high quality connection.
Specifications
| Brand Name |
Thomas & Betts
|
|---|---|
| Cable_Size |
#8 AWG
|
| Color |
Red
|
| Conductor Material |
Copper
|
| Conductor Size |
8
|
| Country of Origin |
MX
|
| Insulation |
None
|
| Material |
Copper
|
| Number_Of_Holes |
1
|
| Package_Quantity |
50
|
| Special Features |
|
| Standard |
UL E9809
|
| Stud_Size |
#10
|
| Sub_Brand |
Color-Keyed
|
| Type |
1-Hole
|
| Voltage Rating |
600 VAC to 35 kV
|
