Thomas & Betts Thomas & Betts 54148
Thomas & Betts 54148
Kirby Risk #: 477784
UPC: 78621054148, 786210541488, 30786210541489
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Thomas & Betts
Description
Industry Description

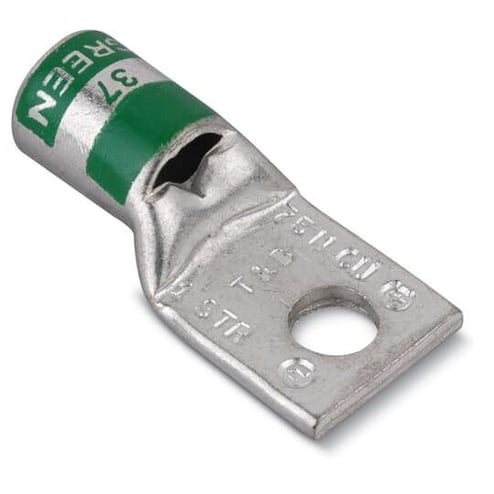

Copper One-Hole Lug, Standard Barrel, Peep Hole, Max 35kV, Wire Size #1 AWG, 3/8 Inch Bolt Size, Tin Plated, Die Code 37, Die Color Code Green
Modified Industry Description
#1 CU STD BRL. 1 HOLE 3/8 INCH BOLT
AD Description
Color-Keyed® 54148 54100 1-Hole Compression Lug, 1 AWG Copper Conductor, Die Code: 37, 3/8 in Stud, Copper
Vendor Description
The Color-Keyed® compression system ensures a proper crimp onto the conductor by matching the right connector to the right tool and die, using a color coding system that was developed and introduced to the industry by T&B®. When using the Color-Keyed® compression system with our Blackburn® line of compression connectors, the installer can count on a reliable, high quality connection.
Specifications
| Brand Name |
Thomas & Betts
|
|---|---|
| Cable_Size |
#1 AWG
|
| Color |
Green
|
| Conductor Material |
Copper
|
| Conductor Size |
1
|
| Country of Origin |
MX
|
| Finish |
Tin Plated
|
| Insulation |
None
|
| Material |
Copper
|
| Number_Of_Holes |
1
|
| Package_Quantity |
20
|
| Special Features |
|
| Standard |
UL E9809
|
| Stud_Size |
3/8
|
| Sub_Brand |
Color-Keyed
|
| Tongue_Angle |
Straight
|
| Type |
1-Hole
|
| Voltage Rating |
600 VAC to 35 kV
|
