Thomas & Betts Thomas & Betts ADR35
Thomas & Betts ADR35
Kirby Risk #: 477528
UPC: 78378661019, 783786610198, 30783786610199
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Thomas & Betts
Description
Industry Description
Type ADR-ALCUL Single-Conductor, One-Hole Mount, Conductor Range 6 Str-350 kcmil, Length 2-1/4 Inches, Width 1-1/8 Inches, Height 1-1/4 Inches, Socket Screw, Tin Plated
Modified Industry Description
6 TO 350 MCM MECHANICAL TERMINAL LUG, 1 CONDUCTOR, 1 HOLE
AD Description

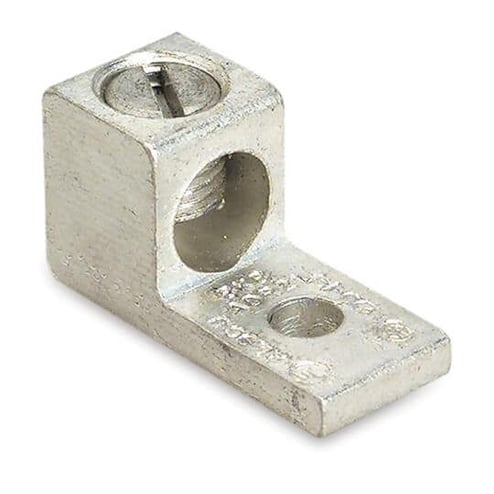

Blackburn® ADR35 Type ADR-ALCUL Dual-Rated Mechanical Connector, 6 AWG to 350 kcmil Aluminum/Stranded Copper Conductor, 3/8 in Stud, 1 Bolt Holes, Aluminum
Vendor Description
Blackburn® cast, forged or formed mechanical connections, produced in economical copper and dual-rated aluminum, provide unequaled variety with a large variety of UL and CSA certified solutions for your electrical interface needs.
Specifications
| Brand Name |
Thomas & Betts
|
|---|---|
| Conductor_Range_Main_Primary |
6 - 350
|
| Conductor Size |
6 AWG to 350 kcmil
|
| Country of Origin |
MX
|
| Finish |
Tin Plated
|
| Insulation |
None
|
| Material |
Aluminum
|
| Number_Of_Mounting_Holes |
1
|
| Package_Quantity |
12
|
| Poles |
1
|
| Special Features |
|
| Standard |
UL E9809
|
| Stud_Size |
3/8
|
| Sub_Brand |
Blackburn
|
| Type |
Type ADR-ALCUL Dual Rated
|
| Voltage Rating |
600
|
