Thomas & Betts Thomas & Betts IPC4111

Name: Thomas & Betts IPC4111
Brand: Thomas & Betts
SKU: 477516
Price: 7223.97 USD
Availability: InStock

Thomas & Betts IPC4111

Kirby Risk #: 477516

UPC: 78378633111, 783786331116, 30783786331117

Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)

Brand: Thomas & Betts

Description

Industry Description

Type IPC - Talon Insulation Piercing Connector for Conductor Range Main: 4/0-1/0 AWG, 95-50 MM sq., Tap: 1/0-6 AWG, 50-16 MM sq.

Modified Industry Description

4/0 TO 1/0 AL9CU TAP

AD Description

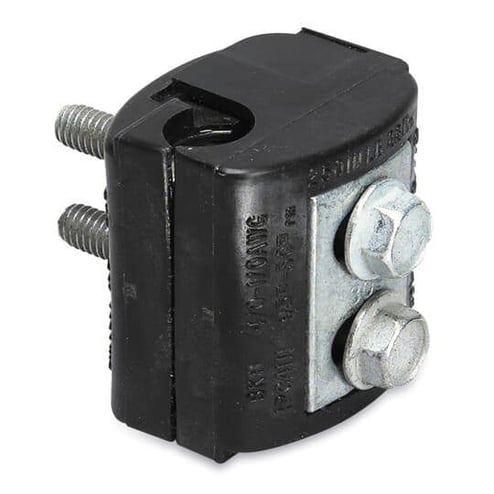

Blackburn® Talon™ IPC4111 Type IPC Insulation Piercing Connector, 1/0 to 4/0 AWG Aluminum/Copper Conductor, Aluminum

Brand Name	Thomas & Betts
Color	Black
Conductor_Range_Main_Primary	4/0-1/0 AWG, 95-50 MM sq.
Conductor_Range_Tap_Secondary	1/0-6 AWG
Conductor Type	Aluminum/Copper
Conductor Size	1/0 to 4/0
Country of Origin	MX
Finish	Tin Plated
Material	Aluminum
Number_Of_Mounting_Holes	2
Package_Quantity	30
Special Features	1/0 to 4/0 AWG, 95 to 50 sq-mm conductor 120/pack 2-mounting holes Eliminate need for conductor insulation stripping For use on insulated conductors only No taping required after installation Performs as splice or tab for non-tension applications up to 600 VAC, depending on size of connector Self-insulated for hot line applications
Standard	UL E9809
Sub_Brand	Blackburn
Temperature_Rating	90
Type	Type IPC
Voltage Rating	300
