Thomas & Betts Thomas & Betts CU8


Description

Industry Description

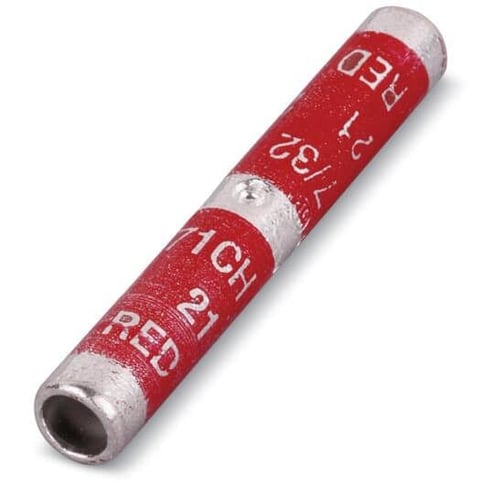

Type CU Copper Splice, Long Barrel, 1-3/4 Inch Length, Max 35kV, Wire Size 8 Str, Tin Plated, Die Color Code Red

Modified Industry Description

CU COMPR SLEEVE

AD Description

Blackburn® CU8 Type CU Heavy Duty Compression Splice, 8 AWG Conductor, 1-3/4 in L, Long Barrel, Copper, Red

Vendor Description

Blackburn® is a complete and reliable line of overhead, grounding, mechanical and compression connectors that respond to a broad range of construction needs.

Specifications

Brand Name
Thomas & Betts
Color
Red
Conductor Type
Stranded Copper
Conductor Size
8
Country of Origin
MX
Finish
Tin Plated
Material
Copper
Package_Quantity
50
Special Features

  • Can be used for medium voltage application up to 35 kV provided proper insulation techniques are used
  • Color coded for matching die identification
  • For use with copper conductor AWG, stranded, flexible cable, welding cable and portable cord
  • Heavy duty design which permits additional crimp for added mechanical strength
  • Made of high conductivity seamless copper tubing, tin plated for corrosion-resistance
  • Specifically chamfered barrel for ease of installation
Standard
UL E9809
Sub_Brand
Blackburn
Type
Heavy Duty Type CU
Voltage Rating
35
