Thomas & Betts Thomas & Betts CS72
Thomas & Betts CS72
Kirby Risk #: 477009
UPC: 78378610060, 783786100606, 30783786100607
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Thomas & Betts
Description
Industry Description
Aluminum 2 Inch Service Entrance Compression Splice for Wire Range - End A: 2 6/1,7/1 ASCR, 1-2 Stranded, Red, End B: 4 6/1,7/1 ASCR, 3-4 Stranded, 2 Solid, Orange, Die: 5/8. For AL-AL or AL-CU Conductors.
Modified Industry Description
ALUM. COMPR. SLEEVE
AD Description

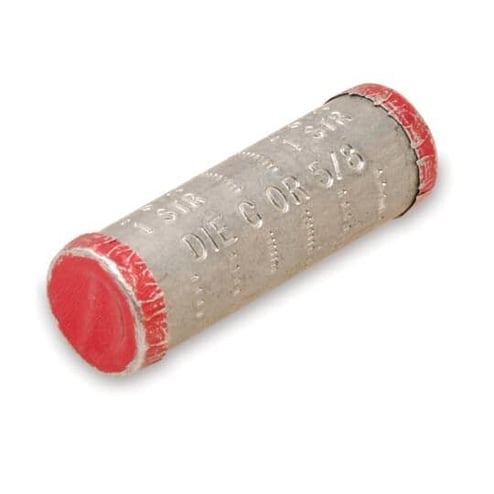

Blackburn® CS72 CS Series Basic Non-Insulated Service Entrance Splice, 4 to 1 AWG ACSR/Solid/Stranded Conductor, Die Code: 5/8, 2 in L, Aluminum
Vendor Description
Blackburn® stands for quality and reliability as a supplier of materials to connect overhead distribution power lines and equipment.
Specifications
| Application |
Basic, uninsulated Splices for Service Entrances. For Combinations of Aluminum-to-Aluminum or Aluminum-to-Copper Conductors.
|
|---|---|
| Brand Name |
Thomas & Betts
|
| Color |
Orange/Red
|
| Color_Code |
Red to Orange
|
| Conductor Range |
2-1
|
| Connection |
Compression
|
| Conductor Size |
4 to 1
|
| Country of Origin |
MX
|
| Environmental_Conditions |
All Seasons / Conditions
|
| Insulation |
Non Insulated
|
| Material |
Aluminum
|
| Mounting |
None
|
| Special Features |
|
| Standard |
RUS Accepted. Complies with ANSI C119.4 when properly installed on Aluminum-to-Aluminum or Aluminum-to-Copper Conductors.
|
| Sub_Brand |
Blackburn
|
| Type |
Basic Non-Insulated
|
| Width_2 |
11.6000
|
| Width_3 |
11.0000
|
