Thomas & Betts Thomas & Betts DF2504FRAB0

Name: Thomas & Betts DF2504FRAB0
Brand: Thomas & Betts
SKU: 476892
Price: 6595.42 USD
Availability: InStock

Thomas & Betts DF2504FRAB0

Kirby Risk #: 476892

UPC: 70891713864, 708917138648, 00708917138648

Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)

Brand: Thomas & Betts

Description

Industry Description

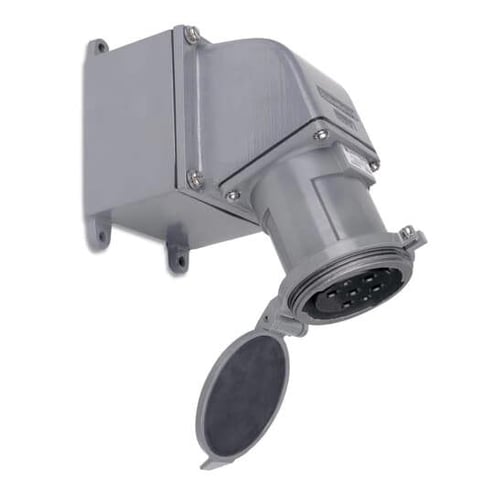

MaxGard Female Flap Cap Receptacle with Angle Adapter and Junction Box, 200 Amp, 4 Pole 5 Wire, 30Y 277/480V, 60Hz

Modified Industry Description

200A 277/480V 4 POLE 5 WIRE FEMALE RECEPTACLE

AD Description

Russellstoll® MaxGard® DF2504FRAB0 Explosionproof Female Flap Cap Receptacle With Angle Adapter, Junction Box, 30/480 VAC, 200 A, 4 Poles, 5 Wires

Amperage Rating	200
Application	Electrical hook-up of mobile medical imaging (MMI) trailers.
Brand Name	Thomas & Betts
Country of Origin	MX
Frequency_Rating	60
Material	Cast Aluminum
Number_Of_Poles	4
Number_Of_Wires	5
Special Features	All receptacles and connectors have a gated rotating disk on the face of the interior, engaged on insertion Center ground contacts, make first, break last Two optional pilot/control pins for contractors, load monitor circuits, shunt trip or any other communication functions you need Waterproof construction provides environmental separation at the front of each device
Sub_Brand	Russellstoll
Temperature_Rating	-40 to 130
Type	Explosionproof Female
Voltage Rating	277/480
