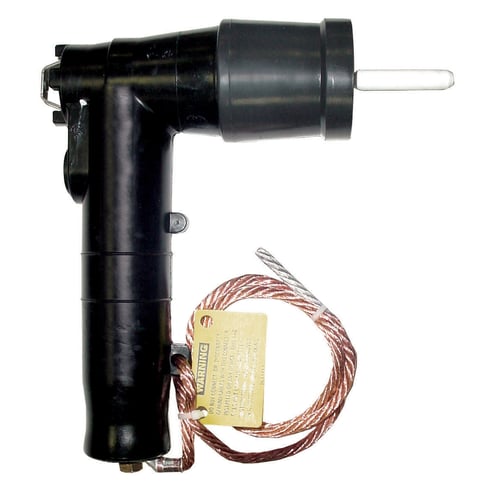

Thomas & Betts Thomas & Betts 167ESA-15
Thomas & Betts 167ESA-15
Kirby Risk #: 3631376
UPC: 78378662242, 783786622429, 00783786622429
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Thomas & Betts
Specifications
| Amperage Rating |
200 A
|
|---|---|
| Brand Name |
Thomas & Betts
|
| Country of Origin |
US
|
| Insulation |
True
|
| Material |
EPDM Molded Rubber
|
| Special Features |
EPDM Rubber Construction - Fully Shielded and Fully Submersible for a Variety of Applications. IEEE 386 Interfaces Provide Convenient Energized Connection with other 200 Amp Loadbreak or Deadbreak Components. Compact Size Enables Installation in your Existing Cabinetry, Saving you Money. Number 4 AWG Ground Lead Tethered to the Jacket Withstands 10,000 Amps for 10 Cycles without Fusing. Ground Lead Also Controls ENd Plug when Ejected, Preventing Uncontrolled Trajectory and Maintains the Housing Shield Ground Connection After Failure
|
| Type |
Elbow Surge Arrester
|
| Voltage Rating |
15 KV
|
| Width_2 |
500.0000
|
