O-Z/Gedney O-Z/Gedney IBC250L20AC
O-Z/Gedney IBC250L20AC
Kirby Risk #: 3591487
UPC: 78312630323, 783126303230, 00783126303230
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: O-Z/Gedney
Specifications
| Application |
For Rigid Conduit And IMC
|
|---|---|
| Connection |
Threaded
|
| Country of Origin |
MX
|
| Finish |
Zinc Plated
|
| Length1 |
6.9000
|
| Material |
Malleable Body, Aluminum Lug, Steel Clamping Screw And Set Screws
|
| Size |
2-1/2
|
| Special Features |
O-Z/Gedney malleable iron bushings incorporate a thermoplastic insulator and an aluminum lay-in lug grounding lug; They are used to protect wires and cables at entry and exit of conduit and to provide for grounding of the conduit; Insulating liner material is UL V-O rated (self extinguishing); The plastic liner is tough, it won’t chip, crack, swell or shrink, resists corrosion, chemicals and temperature extremes; Surface friction is so low that wires can be pulled with virtually no abrasion on the cable insulation; Set-screw provided with each fitting locks bushing in any desired position; UL listed for use with copper or aluminum grounding conductors; Lugs not sold separately
|
| Standard |
Third Party Certification: UL File Number E-24264, CSA 009795, Applicable Third Party Standards: UL 467, CSA C22.2 No.41, Federal Specification W-F-408E, NEMA : FB-1
|
| Temperature_Rating |
150
|
| Type |

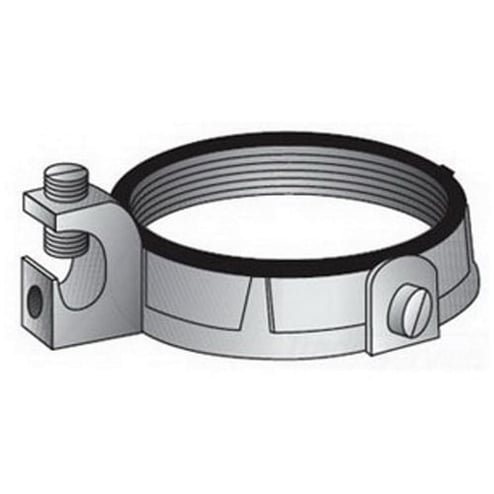

IBC-L-AC Insulated Grounding Bushing With Lug
|
