Appleton Appleton 20A2F0505
Appleton 20A2F0505
Kirby Risk #: 3562750
UPC: 78138124878, 781381248785, 00781381248785
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Appleton
Specifications
| Application |
For Unarmored Cable
|
|---|---|
| Connection |
NPT
|
| Country of Origin |
GB
|
| Enclosure |
IP66, IP68
|
| Finish |
Nickel
|
| Length1 |
11.1000
|
| Material |
Brass
|
| Size |
1/2 (20)
|
| Special Features |
Elastomer displacement low smoke fume thermoplastic seal for unarmored cable provides a combined flameproof and weatherproof seal on the outer sheath of the cable; Entry thread seal not supplied
|
| Standard |
Zones 1 And 2, Gas-ATEX/IEC Protection: Ex d IIC, Ex e II, Ex nR II, Zones 21 and 22, Dust-Conforming to ATEX 94/9/CE: CE 0081 II 2 D-ATEX/IEC Protection: Ex tD A21, Conforming To ATEX 94/9/CE: II 2 GD, CE Declaration Of Conformity: DC07001, ATEX Certificate: SIRA 06 ATEX 1097X, IECEx Certificate: IECEx SIR 06.0043X, CSA 101909, C22.2 No. 174, CAN/CSA E60079-0, CAN/CSA E60079-1, CAN/CSA E60079-7, GOST, Lloyds, DNV, ABS Certified, IEC Standards Latest Editions: 60079-0, 60079-1, 60079-7, 60079-15, 61241-0, 61241-1, BS 6121, NF E 03 601 (Conical Thread), ISO 065/I/III (Metric Thread)
|
| Type |

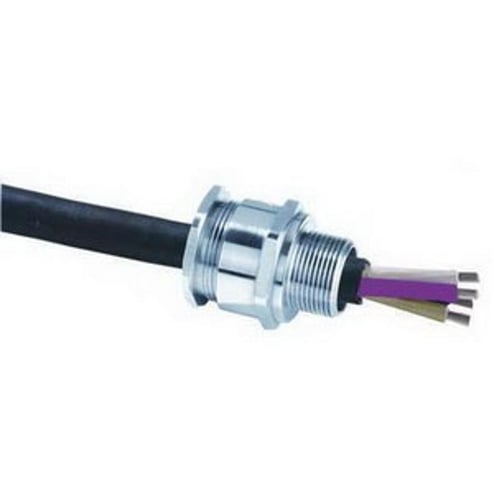

A2F Series Cable Gland Connector
|
