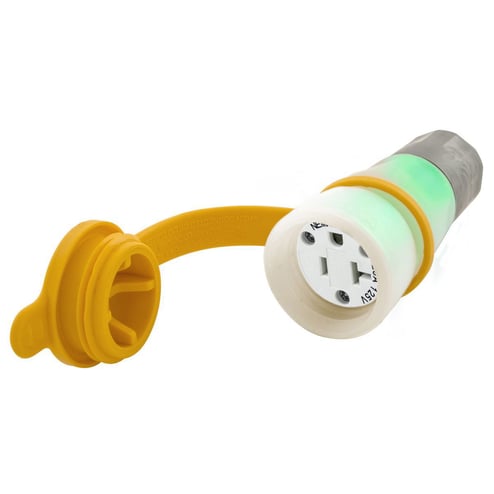

Hubbell Hubbell HBL15W33AWC
Hubbell HBL15W33AWC
Kirby Risk #: 3507114
UPC: 78358558063, 783585580630, 00783585580630
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Hubbell
Specifications
| Amperage Rating |
20
|
|---|---|
| Application |
Wet and Moist Environments
|
| Brand Name |
Hubbell
|
| Color |
White
|
| Conductor Range |
#14AWG - #12AWG
|
| Connection |
Screw Terminals
|
| Country of Origin |
PR
|
| Environmental_Conditions |
Watertight
|
| Grade |
Watertight
|
| Insulation |
Insulated Body
|
| Material |
Thermoplastic Elastomer
|
| Mounting |
Cord Mounted
|
| NEMA_Configuration |
5-20R
|
| NEMA_Rating |
NEAM 5-20R
|
| Number Of Conductors |
3
|
| Number_Of_Poles |
2
|
| Number_Of_Wires |
3
|
| Poles |
2
|
| Size |
Standard Sized Product
|
| Special Features |
Illuminated
|
| Standard |
Meets NEMA WD-1, WD-6 And ANSI Standards
|
| Temperature_Rating |
30 Degree Maximum per UL498 at Rated Current
|
| Type |
Watertight
|
| Voltage Rating |
125
|
