NSI NSi 701B
NSI 701B
Kirby Risk #: 3479197
UPC: 78626110121, 786261101211, 00786261101211
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: NSI
Description
Industry Description

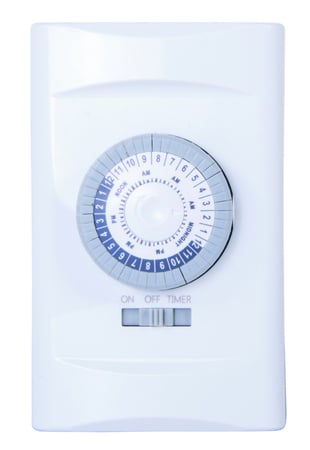

24 Hour Mechanical In-Wall Time Switch - 20AMP APPLICATIONS: Porch or Patio, Doorway, Pool, Outdoor Security Lighting FEATURES: COLOR: White SCHEDULING: Minimum ON is setting 30 minutes. Dial has 48 captive trippers. BYPASS SWITCH: Slide switch for ON, OFF, or TIMER (automatic) operation. VACATION MODE: Set timer OFF with no change of tripper settings. WIRING: Requires a neutral. CLOCK FORMAT: AM/PM marked on dial WALL PLATE: Supplied with a single gang wall plate. CONTACT RATINGS: VOLTAGE: 125VAC GENERAL PURPOSE: 20A RESISTIVE: 20A TUNGSTEN:
AD Description
NSI Tork® 701B 1-Phase Mechanical Timer With 1-Gang Decorator Wallplate, 24 hr Setting, 125 VAC, 1 hp, SPST Contact, 1 Poles
Specifications
| Action |
SPST
|
|---|---|
| Application |
Porch-Patio-Pool-Outdoor Security Lighting
|
| Base |
Wall Plate
|
| Country of Origin |
CHN
|
| Enclosure |
Single Gang Wall Plate
|
| Environmental_Conditions |
32 to + 104
|
| Frequency_Rating |
60 Hz
|
| Length1 |
1.5000
|
| Mounting |
Single Gang Wall Plate
|
| Number_Of_Poles |
1
|
| Operating_Temperature |
32 to + 104
|
| Phase |
Single Phase
|
| Size |
H=5.00 - W=3.00
|
| Special Features |
White 24 Hour In Wall Time Switch With Bypass Switch
|
| Standard |
cULus
|
| Sub_Brand |
In Wall Timers
|
| Type |
24 Hour In Wall Time Switch
|
