Hubbell Hubbell HBLDS3SSRJ
Hubbell HBLDS3SSRJ
Kirby Risk #: 3462048
UPC: 78358545779, 783585457796, 00783585457796
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Hubbell
Description
Industry Description
Hubbell Wiring Device Kellems, Disconnect Switches, 30A 600V AC,Unfused, With Jog and Aux Contact, In NEMA 4X Stainless Steel Enclosure
AD Description

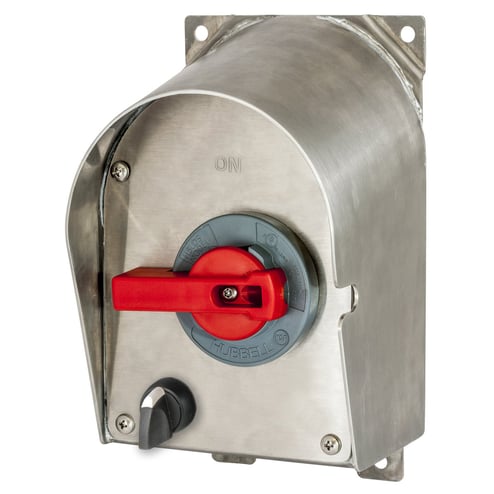

Wiring Device-Kellems Circuit-Lock® HBLDS3SSRJ Sloped Top Standard Unfused Enclosed Disconnect Switch With Jog Switch, 600 VAC, 30 A, 15 hp, 3 Poles
Vendor Description
Hubbell® Stainless Steel Disconnect Switch is the latest addition to the Circuit-Lock® family of switched enclosures. The product has been certified by NSF International for hygiene applications in food and beverage processing. The enclosures are designed to withstand harsh environments with exposure to water, chemicals, oils and frequent washdowns. The enclosures feature 304 Series Stainless Steel and are UL Listed Type 4X and 12. The DIN rail mounted switch accommodates up to two auxiliary contacts for control circuit applications. The high visibility red handle can be locked in the OFF position for compliance with OSHA lockout/ tagout requirements.
Specifications
| Application |
Motor Starting w/o Overload Protection
|
|---|---|
| Connection |
Pressure Screw Terminals
|
| Country of Origin |
PL
|
| Length1 |
10.1000
|
| Mounting |
Screw Mount
|
| Number_Of_Poles |
3
|
| Power_Rating |
18,000
|
| Series |
Non-Fused
|
| Size |
Standard Sized Product
|
| Special Features |
|
| Standard |
UL508
|
| Sub_Brand |
Motor Disconnects
|
| Temperature_Rating |
-40
|
| Type |
Enclosed Switch
|
| Voltage Rating |
600
|
