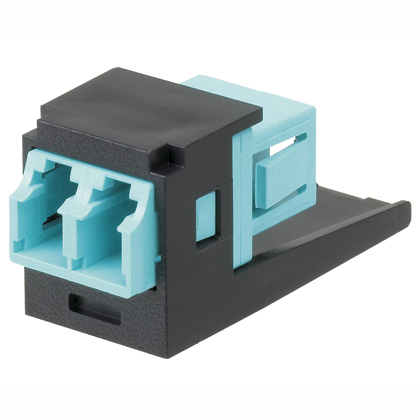

Panduit Pan-Net Panduit Pan-Net CMDJAQLCZBL


Description

Industry Description

Module supplied with one LC Sr./Jr. OM3/OM4 SFF Duplex Multimode Fiber Optic Adapter (AQ) with zirconia ceramic split sleeves.

Modified Industry Description

MINI-COM LC Sr./Jr. Fiber Optic Adapter Module

AD Description

Panduit® Mini-Com® CMDJAQLCZBL Duplex Fiber Optic Adapter Module, LC Connector, Surface Mount, Multi-Mode Fiber

Vendor Description

LC small form factor (SFF) fiber optic adapters with integrated panel retention clips are TIA/EIA-604 FOCIS-10 compatible. Each LC simplex adapter shall connect one LC connector pair in one module space. Each LC duplex adapter shall connect two LC connector pairs in one module space. LC adapters and adapter modules shall include phosphor bronze split sleeves for multimode applications or zirconia ceramic split sleeves for Singlemode applications.

Specifications

Application
Mini-Com Modules, Patch Panels, Faceplates, Surface Mount Boxes
Brand Name
Panduit Pan-Net
Color
Aqua/Black
Country of Origin
USA
Fiber_Type
Multi-Mode
Material
ABS
Special Features

  • 0.1 dB average insertion loss, >20 dB return loss
  • 0.71 in H x 0.62 in W x 1.37 in D dimension
  • Accept FOCIS-10 compatible senior LC connectors at either end and FOCIS-10 junior LC connectors at the inside end for behind the wall applications
  • Black module and aqua adapter
  • Choice of phosphor bronze or zirconia ceramic split sleeves to fit specific network requirements, zirconia ceramic split sleeves are recommended for OM3/OM4 multimode and OS1/OS2 Singlemode applications
  • Compatible with Mini-Com® products for complete modularity
  • Every adapter is laser marked with Q.C. number to assure 100 percent traceability
  • Module supplied with one LC Sr./Jr. 10Gig™ SFF duplex multimode fiber-optic adapter (AQ) with zirconia ceramic split sleeves
  • OM3/OM4 50/125 um fiber
  • One module space
  • Small form factor duplex adapter design fits into single module space
  • Zirconia ceramic split sleeve material
Standard
RoHS Compliant
Sub_Brand
Mini-Com
Type
Duplex
Width_2
4.2000
